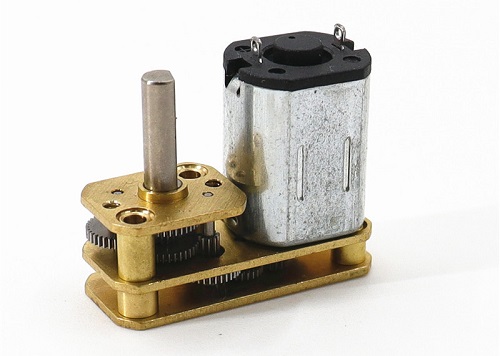

24mm micro metal dc gearmotor

Desc:

24mm micro metal dc gearmotor,KG-24UN20 6v 24mm metal gearmotor Product Model:metal spur gearmotor OD: 24mm Gearbox:metal Rotation: cw&ccw...

Recommended
Detailed


Product description

Model:KG-24UN20   24mm metal gearmotor

Diameter:24mm

Length:19mm

Characters:
1.Small size dc gearmotor with low speed and big torque
2.24mm gear motor provide 0.01Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application

4.Dc Gear motors can match connector
5.Reduction Ratio: 50、100、150、350、500

Gearbox features:

1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.15mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-12V

2. No Load Speed: 6-1000 rpm

3. No Load Current: 60 mA
4. Rated Load Speed: 5-950 rpm

5. Rated Load Current: 160 mA

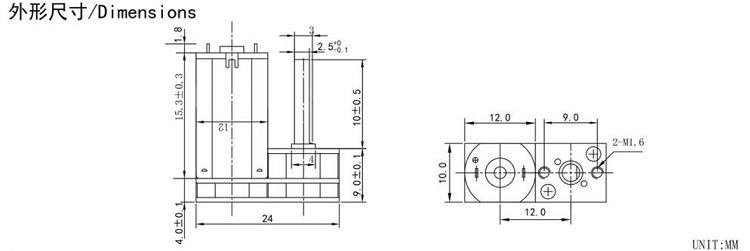

Drawing of 24mm 6v 12v micro metal dc gearmotor

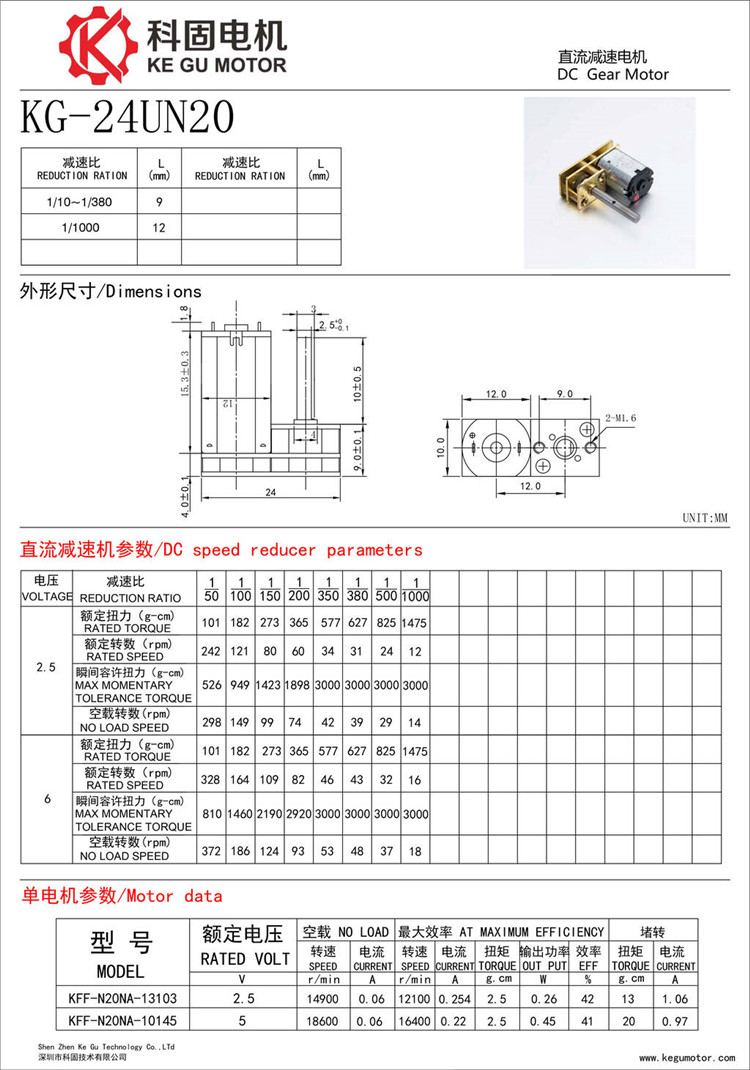

Performance of 24mm 6v 12v micro metal dc gearmotor

above specifications are subject to change without notice, just for reference and customizable according to requirements.

Application areas:



The company's products are widely used in: shared bicycles, electronic door locks, beauty equipment, ATM financial equipment, smart homes, range hoods, electric curtains, paper feeders, vending machines, smart water dispensers, coffee machines, printers, safes, and instruments Instruments, personal care, communication equipment, display racks, smart water meters, smart switches, optical equipment, smart robots, medical equipment and other industries can be customized according to the different needs of customers.
