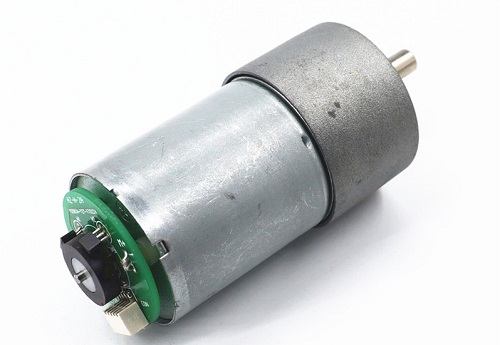

37mm 24v micro metal gearmotor with encoder

Product description

Model:KG-37B545  37mm 24v micro metal gearmotor with encoder

Diameter:37mm

Length:50mm+gearbox

Characters:
1.Small size dc gear motor with low speed and big torque
2.37mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application

4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 10、15、18、25、30、35、60、76、90、100、120、150、200、255、300

Gearbox features:

1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.5mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-24V

2. No Load Speed: 6-1000 rpm

3. No Load Current: 60 mA
4. Rated Load Speed: 5-950 rpm

5. Rated Load Current: 620 mA

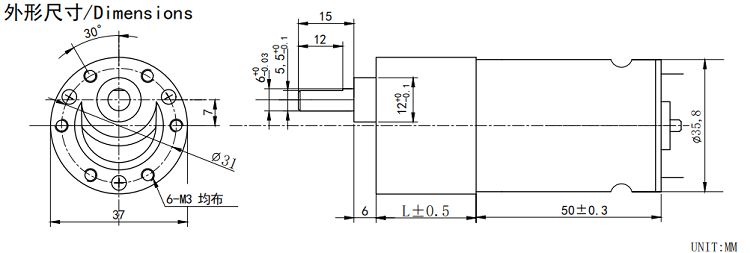

Drawing of 37mm 12v 24v micro metal gearmotor with encoder

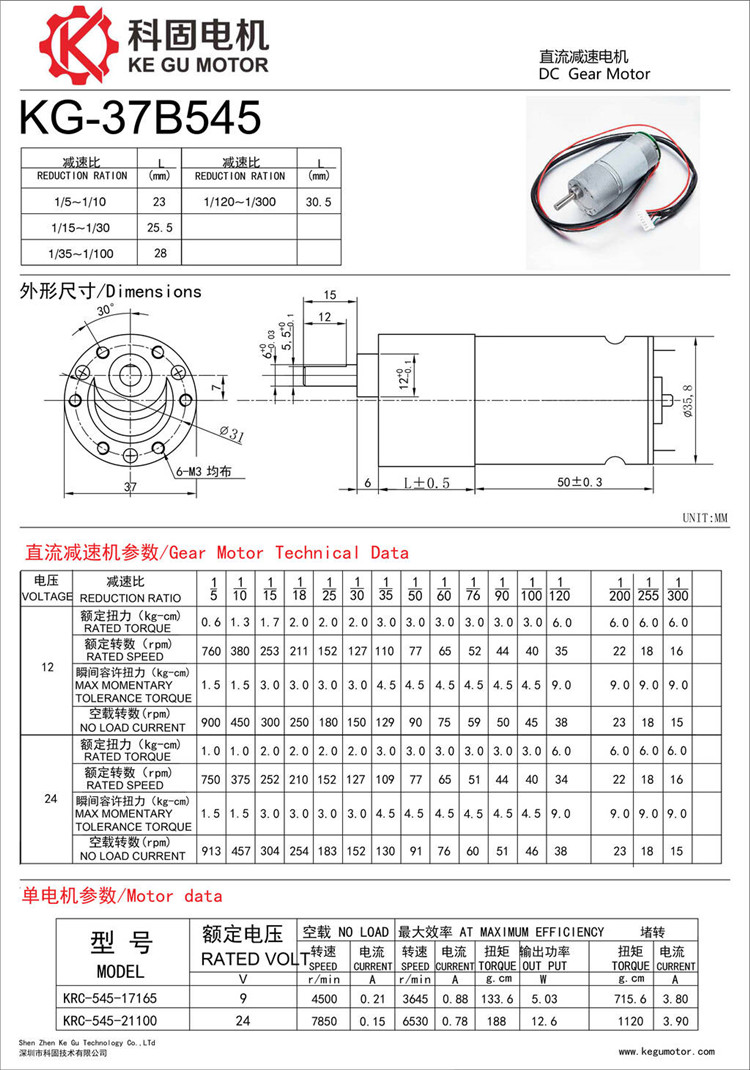

Performance of 37mm 12v 24v micro metal  gearmotor with encoder

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
