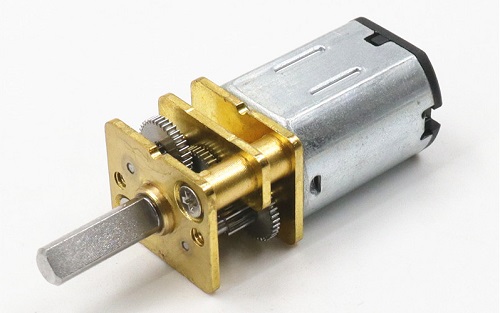

Product description 12mm micro metal dc gearmotor
Diameter:12mm
Length:24.1mm
Characters:
1.Small size dc gearmotor with low speed and big torque
2.12mm gearmotor provide 0.01Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Dc Gear motors can match encoder, 3ppr
5.Reduction Ratio: 3、5、10、20、30、50、63、100、150、210、250、298、380、1000
Gearbox features:
1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.
2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.
3. Meet EU environmental protection standards.
4. Appearance and structural design strive to be thin, short, compact, and lightweight.
5. Make the modulus of the gear to a minimum of 0.15mm within a limited volume.
Motor Specifications:
1. Rated Voltage: 3.0-12V
2. No Load Speed: 6-1000 rpm
3. No Load Current: 60 mA
4. Rated Load Speed: 5-950 rpm
5. Rated Load Current: 160 mA

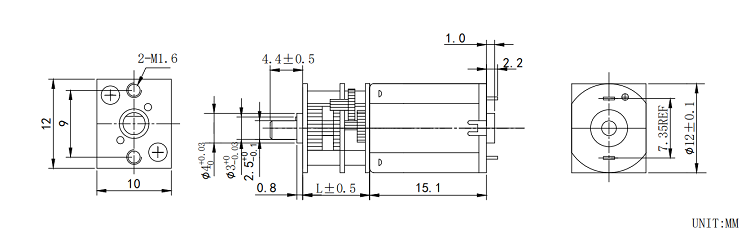

Drawing of 12mm micro metal dc gearmotor
12MM Metal Gearbox Datasheet:
|
Number of stages
|
2
|
4
|
5
|
7
|
|
Reduction ratio
|
3,5,10
|
17,20,30,36,50,63,100
|
110,150,210,250,298,380,422
|
1000
|
|
Gearbox length “L”mm
|
9
|
9
|
9
|
12
|
|
Breaking torque(kgf.cm)
|
0.6
|
0.9
|
1.2
|
2
|
|
Gearbox efficiency
|
81%
|
65%
|
59%
|
48%
|
12MM metal Gearmotor Datasheet:
|
Motor model
|
Rated Volt.
|
No load
|
At Max Eff Load
|
Stall
|
|||||
|
Current
|
Speed
|
Current
|
Speed
|
Torque
|
Output power
|
Torque
|
Current
|
||
|
V
|
mA
|
r/min
|
mA
|
r/min
|
gf.cm
|
W
|
gf.cm
|
mA
|
|
|
KG-12FN20-100-S1
|
3
|
≤50
|
100
|
≤185
|
80
|
120
|
0.2
|
≥480
|
≥350
|
|
KG-12FN20-100-S2
|
3
|
≤80
|
150
|
≤280
|
124
|
180
|
0.4
|
≥720
|
≥520
|
|
KG-12FN20-100-S3
|
3
|
≤110
|
200
|
≤370
|
155
|
240
|
0.6
|
≥960
|
≥700
|
|
KG-12FN20-100-S4
|
6
|
≤25
|
100
|
≤95
|
80
|
120
|
0.2
|
≥480
|
≥160
|
|
KG-12FN20-100-S5
|
6
|
≤40
|
150
|
≤145
|
124
|
180
|
0.4
|
≥720
|
≥250
|
|
KG-12FN20-100-S6
|
6
|
≤60
|
200
|
≤190
|
155
|
240
|
0.6
|
≥960
|
≥320
|
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
Whenever you need accurately controlled motion, you can consider the12mm geared motor. Its metal spur gearbox is manufactured with high precision. Each geared motor consists of a 12mm flat-sided ferrite motor. It also has a D-shaped ,M3 screw ,M4 screw output shaft that ensures zero slip. Consider these miniature geared motors for applications like desktop printers and smart locks.
N20 gear motor is excellent for speed control, it is widely used in hotel locks, intelligent locks, equipment, etc. 12mm metal dc gear motor are electricity saving and environmental protection. The N20 motors are solidly constructed and ready to install in numerous applications. They are made of high quality metal, compact design and lightweight, easy to install. This geared motor is a great replacement for the rusty or damaged DC geared speed reduce motor on the machine. It can apply to hotel locked intelligent instrument. With a small volume, big torsion, all metal gear, it is durable and not easy to deteriorate.
