Product description

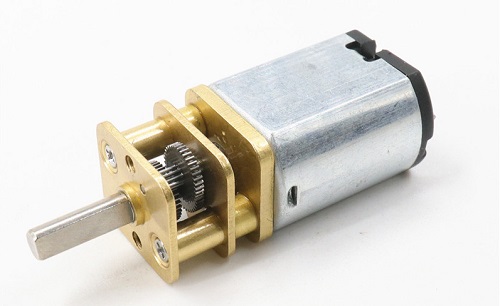

Model: 13mm metal gearbox with FF-030 dc motor
Diameter:13mm
Length:29.1mm
Characters:
1.Small size dc gearmotor with low speed and big torque
2.13mm gearmotor provide 0.01Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Dc Gear motors can match connector
5.Reduction Ratio: 3、10、17、20、35、63、86、115、150、210、250、360
Gearbox features:
1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.
2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.
3. Meet EU environmental protection standards.
4. Appearance and structural design strive to be thin, short, compact, and lightweight.
5. Make the modulus of the gear to a minimum of 0.15mm within a limited volume.
Motor Specifications:
1. Rated Voltage: 3.0-12V
2. No Load Speed: 6-1000 rpm
3. No Load Current: 60 mA
4. Rated Load Speed: 5-950 rpm
5. Rated Load Current: 160 mA

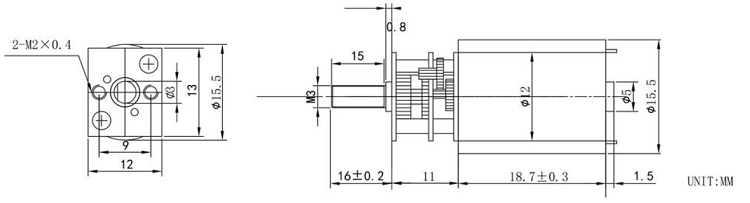

Drawing of 13mm 6v 12v micro metal dc gearmotor
Gear Box Data:
|
Gearbox Length (mm) |
Stages |
Reduction Ratio |
Rated Torque |
Bearable Maximum Instant Torque |
|||||
|
g.cm |
|||||||||
|
11 |
2 |
3/1 |
7/1 |
10/1 |
|
|
|
300 |
600 |
|
4 |
20/1 |
30/1 |
35/1 |
50/1 |
63/1 |
86/1 |
500 |
1000 |
|
|
5 |
115/1 |
150/1 |
210/1 |
250/1 |
360/1 |
|
800 |
1600 |
|
Spur Geared Motor Data:
|
MODEL |
RATIO |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
||||||
|
OPERATING RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
||
|
V |
rpm |
A |
rpm |
A |
g.cm |
W |
g.cm |
A |
|||
|
GM13-030-35-03485 |
35/1 |
2.0~4.0 |
3 |
485 |
0.16 |
380 |
0.51 |
130 |
0.51 |
590 |
2.1 |
|
GM13-030-250-0370 |
250/1 |
2.4~4.0 |
3 |
70 |
0.13 |
57 |
0.54 |
690 |
0.4 |
3750 |
2.4 |
|
GM13-030-210-0968 |
210/1 |
3.0~9.0 |
9 |
68 |
0.03 |
54 |
0.11 |
570 |
0.32 |
2700 |
0.42 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
