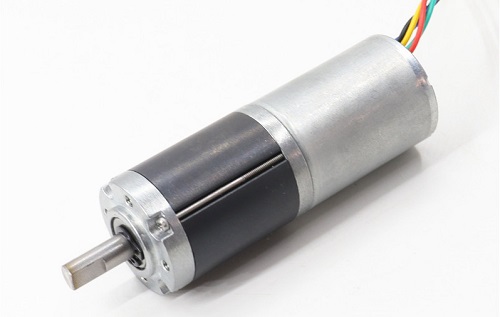

BL2838I-GB 28mm Micro planetary bldc gearmotor 12v

Desc:

BL2838I-GB 28mm Micro planetary bldc gearmotor,28mm Brushless DC BLDC Motor, Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noise...

Recommended
Detailed

BL2838I-GB Standard and generality brushless DC Gearmotor advantages

1、Technology maturation,stable property

2、Save customers development leadtime,product costs

3、High matching,applied to multi-field

4、Reduce largely development leadtime of customers,purchasing and supply

Specifications:


  • Size: Ø28.0* 38.0mm plus 28mm planetary gearbox

  • Built-in driver (built-in driver Controller with hall sensor)

  • PWM pulse wide speed range

  • Clockwise/counter-clockwise rotation

  • FG speed feedback signal

  • Low EMC

  • Low noise

  • Long life: 10000hrs Min.

  • Over-current protection

  • Over-voltage protection

  • Under-voltage protection

  • OEM and ODM orders are welcome

  • The design can be customized

  • Motor item: metal planetary gearbox, BL2838I-GB micro 28mm planetary gearmotor

  • Out diameter:28mm planetary gearbox

  • Raw material: metal gearbox

  • Direction of Rotation: CW&CCW

  • Gear Backlash:≤3°

  • Bearing:Porous Bearing

  • Axial Endplay ≤0.3mm

  • Radial Load on Output Shaft: ≤0.3N

  • Operating Temperature Range:-20……+80℃

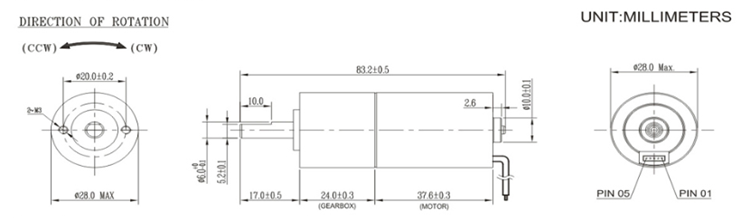

Drawing of BL2838I-GB 28mm Micro planetary bldc gearmotor

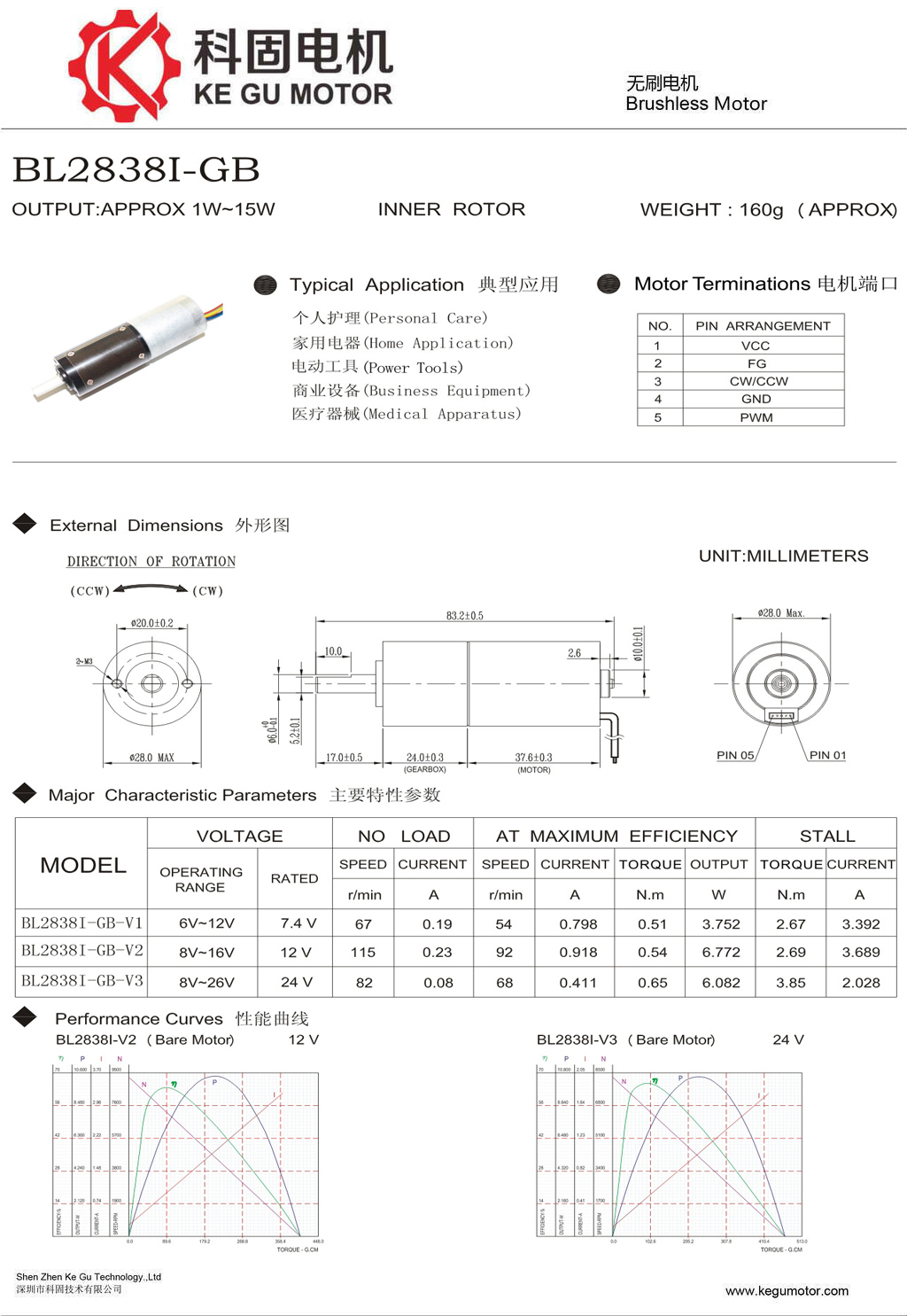

Performance of BL2838I-GB 28mm Micro planetary bldc gearmotor



Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current,

power and shaft extension feature & dimension can be changed to meet customer specific requirement.
