28mm planetary gear motor dc 24v 11rpm for Medical Equipment_Micro BLDC Gear Motor|Micro DC Planetary Gear Motor|Mini BLDC Motor

Standard and generality Planetary Gearmotor advantages

1、Technology maturation,stable property

2、Save customers development leadtime,product costs

3、High matching,applied to multi-field

4、Reduce largely development leadtime of customers,purchasing and supply

Product description

Model:KG-28P395

Diameter:28mm

Length:47mm+planetary gearbox

Characters:
1.Small size dc gear motor with low speed and big torque
2.28mm gear motor provide 0.15Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application

4.Dc Gear motors can match encoder,11ppr

5.Reduction Ratio:4、5、16、19、27、51、79、100、139、190、253、305、352、408、515、596

Gearbox features:

1. It adopts all metal instrument precision planetary gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.3mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-24V

2. No Load Speed: 25-600 rpm

3. No Load Current: 50-150 mA
4. Rated Load Speed: 21-571 rpm

5. Rated Load Current: 100-500 mA

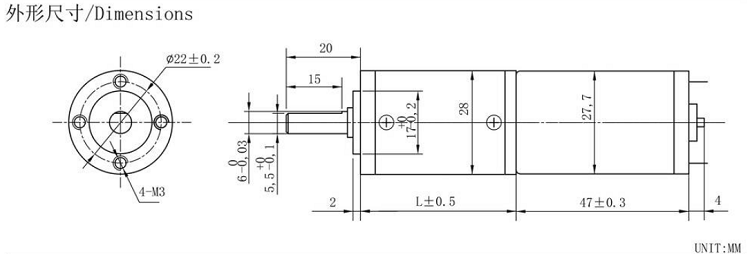

Drawing of 28mm planetary gearmotor

Performance of 28mm planetary gearmotor

MODEL	VOLTAGE	NO- LOAD		AT MAXIMUM EFFICIENCY					STALL TORQUE			RATIO	LENGTH OF GEAR BOX(L)	MATCH THE MOTOR	LENGTH OF MOTOR(L1)
	VOLTAGE	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT	RATIO	LENGTH OF GEAR BOX(L)	MATCH THE MOTOR	LENGTH OF MOTOR(L1)
	V	r/min	A	r/min	A	mN.m	Kg.cm	W	mN.m	Kg.cm	A		mm		mm
KG-28P395-27	24	310	0.15	248	0.40	123.1	1.23	5.5	430.9	4,31	1.6	27	30.9	KRS-395	47
KG-28P395-71	24	115	0.15	92	0.35	216.3	2.21	5.5	757.1	7.74	1.6	71	37.3	KRS-395	47
KG-28P395-100	24	75	0.15	60	0.35	324.5	3.25	5.5	1135.8	11.38	1.6	100	37.3	KRS-395	47
KG-28P395-263	24	28	0.15	22.4	0.35	648.9	6.52	5.5	2271.2	22.82	1.6	263	43.7	KRS-395	47
KG-28P395-720	24	11	0.15	8.8	0.35	2100	21.22	5.5	7,350.0	74.27	1.6	720	43.7	KRS-395	47

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

28mm planetary gear motor dc 24v 11rpm for Medical Equipment
