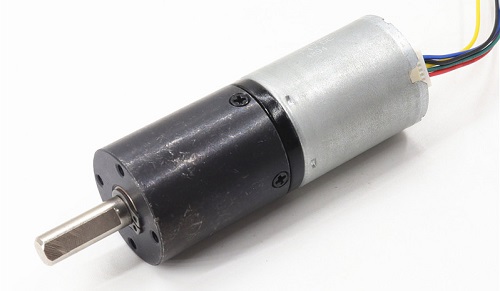

BL2430I-GB 24mm Micro planetary bldc gearmotor 24v

BL2430I-GB Standard and generality brushless DC Gear Motor advantages

1、Technology maturation,stable property

2、Save customers development leadtime,product costs

3、High matching,applied to multi-field

4、Reduce largely development leadtime of customers,purchasing and supply

Specifications:

• Size: Ø24.0* 30.0mm plus 22mm planetary gearbox

• Built-in driver (built-in driver Controller with hall sensor)

• PWM pulse wide speed range

• Clockwise/counter-clockwise rotation

• FG speed feedback signal

• Low EMC

• Low noise

• Long life: 10000hrs Min.

• Over-current protection

• Over-voltage protection

• Under-voltage protection

• OEM and ODM orders are welcome

• The design can be customized

• Motor item: metal planetary gearbox, BL2430I-GB micro 22mm planetary gear motor

• Out diameter:22mm planetary gearbox

• Raw material: metal gearbox

• Direction of Rotation: CW&CCW

• Gear Backlash:≤3°

• Bearing:Porous Bearing

• Axial Endplay ≤0.3mm

• Radial Load on Output Shaft: ≤0.3N

• Operating Temperature Range:-20……+80℃

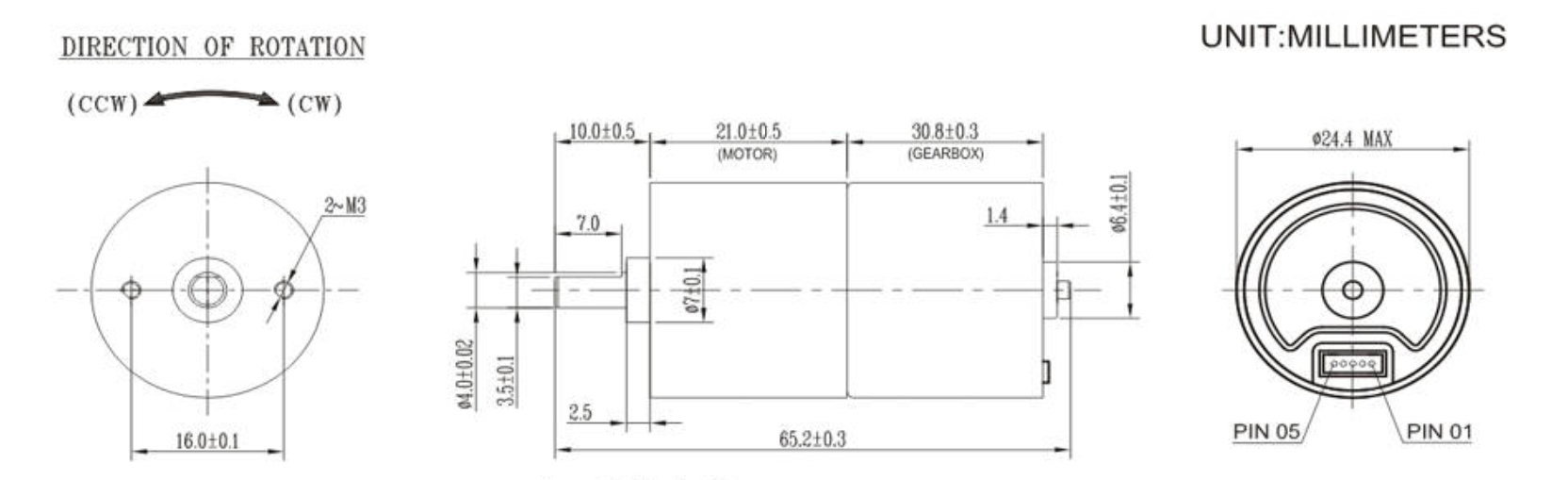

Drawing of BL2430I-GB

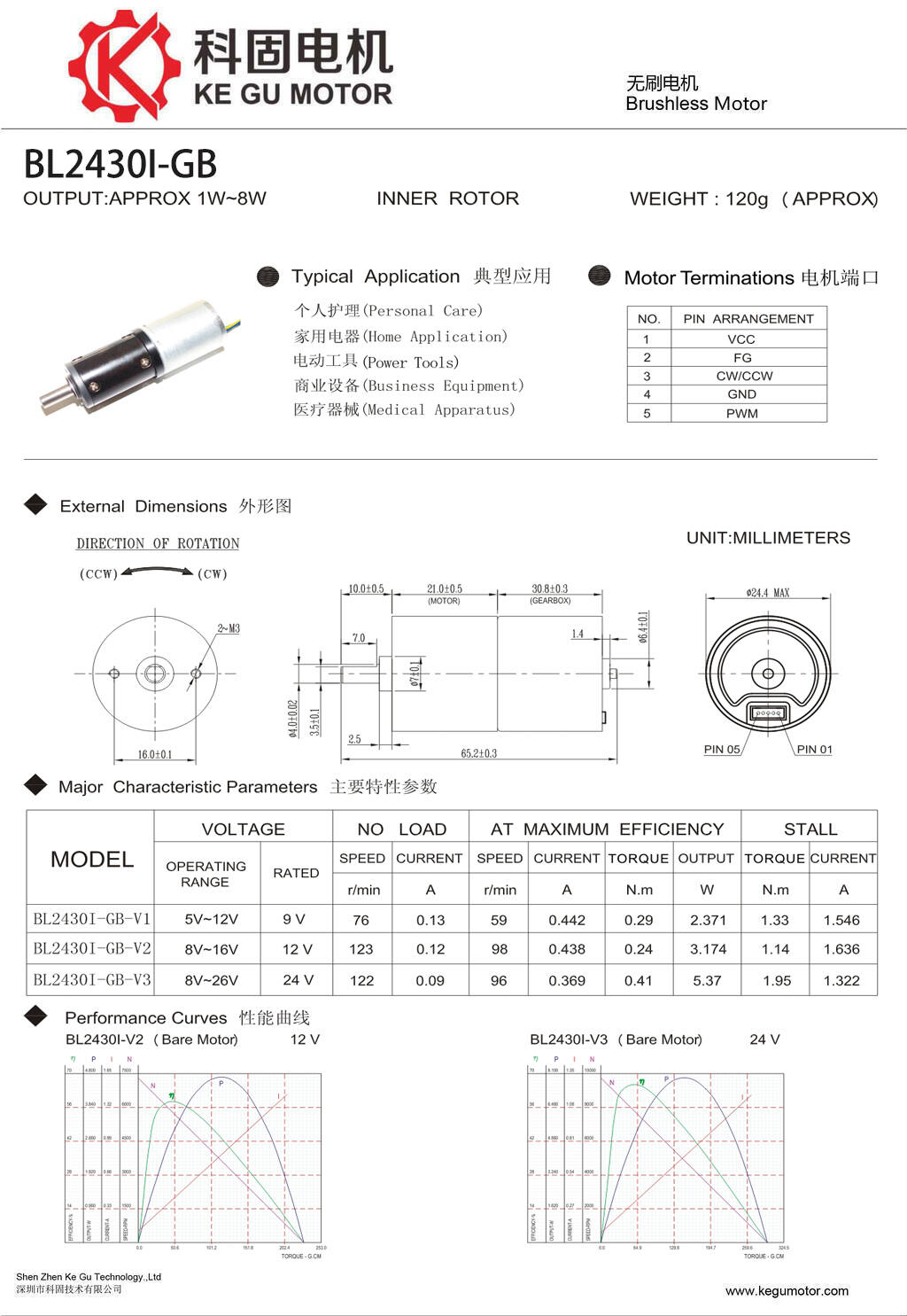

Performance of BL2430I-GB

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
