42mm High torque planetary gear motor with encoder

Standard and generality Planetary Gearmotor advantages

1、Technology maturation,stable property

2、Save customers development leadtime,product costs

3、High matching,applied to multi-field

4、Reduce largely development leadtime of customers,purchasing and supply

Product description

Model:KG-42P775

Diameter:42mm

Length:67mm+planetary gearbox

Characters:
1.Small size dc gear motor with low speed and big torque
2.42mm gear motor provide 0.5Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application

4.Dc Gear motors can match encoder,11ppr

5.Reduction Ratio:3.7、5.2、13.7、19.2、27、50、70、100、139、188、264、516、699、977、1911

Gearbox features:

1. It adopts all metal instrument precision planetary gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.5mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-24V

2. No Load Speed: 25-600 rpm

3. No Load Current: 50-150 mA
4. Rated Load Speed: 21-571 rpm

5. Rated Load Current: 100-500 mA

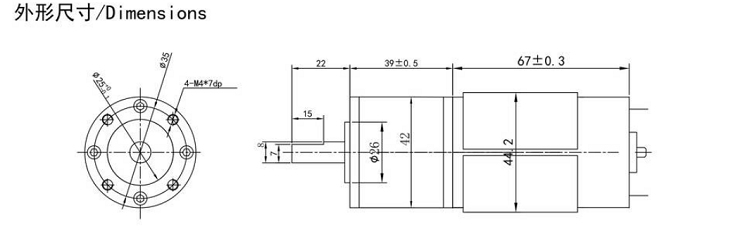

Drawing of 24v 42mm planetary gear motor

Performance of 24v 42mm planetary gear motor

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
