Standard and generality Planetary Gearmotor advantages
1、Technology maturation,stable property
2、Save customers development leadtime,product costs
3、High matching,applied to multi-field
4、Reduce largely development leadtime of customers,purchasing and supply

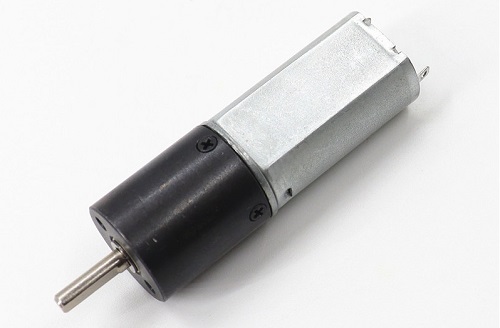

Product description
Model:KG-16P050
Diameter:16mm
Length:26.4mm+planetary gearbox
Characters:
1.Small size dc gear motor with low speed and big torque
2.16mm gear motor provide 0.01Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Dc Gear motors can match encoder,3ppr
5.Reduction Ratio: 4、5、15、23、36、57、69、100、129、167、222、267、385、415、536、834
Gearbox features:
1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.
2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.
3. Meet EU environmental protection standards.
4. Appearance and structural design strive to be thin, short, compact, and lightweight.
5. Make the modulus of the gear to a minimum of 0.15mm within a limited volume.
Motor Specifications:
1. Rated Voltage: 3.0-12V
2. No Load Speed: 25-250 rpm
3. No Load Current: 50 mA
4. Rated Load Speed: 21-229 rpm
5. Rated Load Current: 100 mA

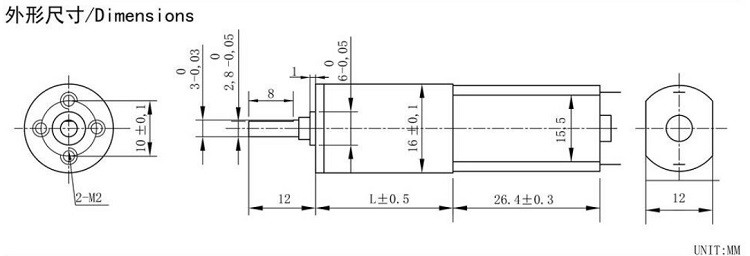

Drawing of 16mm planetary gearmotor
Performance of 16mm planetary gearmotor
| MODEL | VOLTAGE | NO- LOAD | AT MAXIMUM EFFICIENCY | STALL TORQUE | RATIO | LENGTH OF GEAR BOX(L) | MATCH THE MOTOR | LENGTH OF MOTOR(L1) | |||||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||||||
| V | r/min | A | r/min | A | mN.m | Kg.cm | W | mN.m | Kg.cm | A | mm | mm | |||
| KG-16P050-4 | 6V | 1400 | 0.09 | 1130 | 0,13 | 1.6 | 0.02 | 0.45 | 5.6 | 0.07 | 0.65 | 4 | 38.4 | KFF/K-050 | 26.9 |
| KG-16P050-16 | 6V | 350 | 0.09 | 285 | 0,13 | 5.1 | 0.05 | 0.45 | 17.9 | 0.18 | 0.65 | 16 | 41.7 | KFF/K-050 | 26.9 |
| KG-16P050-24 | 6V | 235 | 0.09 | 190 | 0.13 | 7.5 | 0.20 | 0.45 | 26.3 | 0.70 | 0.65 | 24 | 41.7 | KFF/K-050 | 26.9 |
| KG-16P050-64 | 6V | 90 | 0.10 | 75 | 0.14 | 13.2 | 0.14 | 0.45 | 46.2 | 0.49 | 0.65 | 64 | 45 | KFF/K-050 | 26.9 |
| KG-16P050-96 | 6V | 55 | 0.10 | 50 | 0.14 | 19.9 | 0.20 | 0.45 | 69.7 | 0.70 | 0.65 | 96 | 45 | KFF/K-050 | 26.9 |
| KG-16P050-256 | 6V | 22 | 0.10 | 18 | 0.14 | 39.7 | 0.41 | 0.45 | 139.0 | 1.44 | 0.65 | 256 | 48.3 | KFF/K-050 | 26.9 |
| KG-16P050-384 | 6V | 15 | 0.10 | 12 | 0.14 | 60.0 | 0.61 | 0.45 | 210.0 | 2.14 | 0.65 | 384 | 48.3 | KFF/K-050 | 26.9 |
| KG-16P050-576 | 6V | 9 | 0.10 | 8 | 0.14 | 89.0 | 0.91 | 0.45 | 311.5 | 0.46 | 0.65 | 576 | 48.3 | KFF/K-050 | 26.9 |
| KG-16P050-864 | 6V | 6 | 0.12 | 5 | 0.15 | 134.0 | 1.37 | 0.45 | 469.0 | 4.80 | 0.65 | 864 | 48.3 | KFF/K-050 | 26.9 |
| KG-16P050-1296 | 6V | 4 | 0.12 | 3 | 0.15 | 196.0 | 2.00 | 0.45 | 686.0 | 7.00 | 0.65 | 1296 | 48.3 | KFF/K-050 | 26.9 |
Remarks:Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
