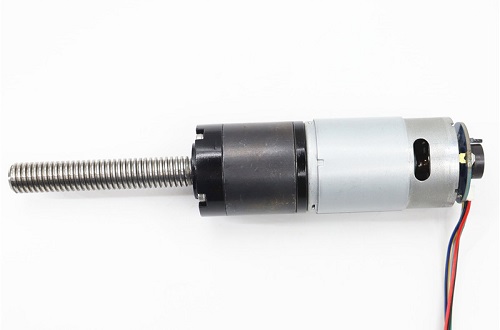

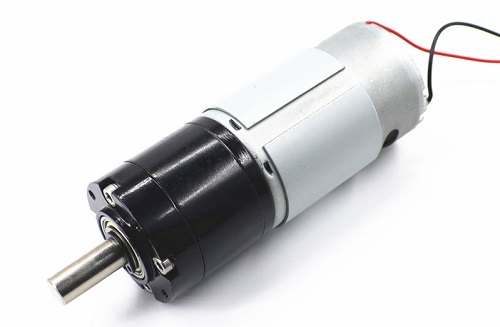

36mm Micro planetary gearmotor 12v 162rpm with encoder

Standard and generality Planetary Gearmotor advantages

1、Technology maturation,stable property

2、Save customers development leadtime,product costs

3、High matching,applied to multi-field

4、Reduce largely development leadtime of customers,purchasing and supply

Product description

Model:KG-36P555

Diameter:36mm

Length:57mm+planetary gearbox

Characters:
1.Small size dc gear motor with low speed and big torque
2.36mm gear motor provide 0.5Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application

4.Dc Gear motors can match encoder,11ppr

5.Reduction Ratio:4、6、13、25、40、56、74、112、158、254、311、370、441、625、707、792

Gearbox features:

1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.5mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-24V

2. No Load Speed: 25-600 rpm

3. No Load Current: 50-150 mA
4. Rated Load Speed: 21-571 rpm

5. Rated Load Current: 100-500 mA

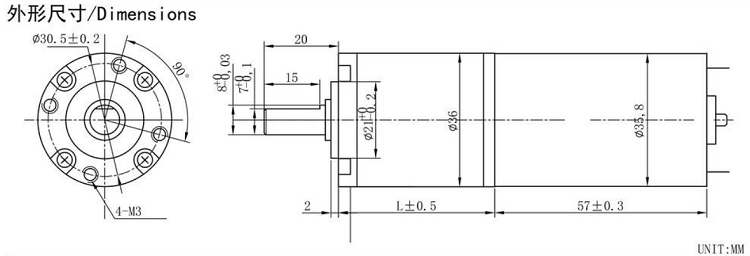

Drawing of 36mm planetary gearmotor
