Ask 12V Coreless DC Motor Datasheet & Price Now! Fast Reply Within Few Hours! Longer Working Time! Lower Current. New Design Support. Find Best 12 V DC Motor Seller From China. Premium Quality & Coreless DC Motor Exporter.

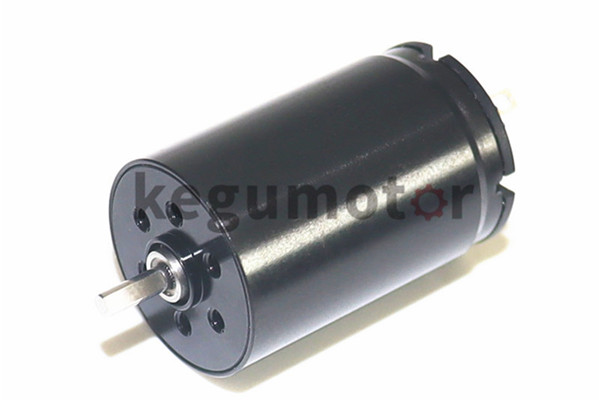

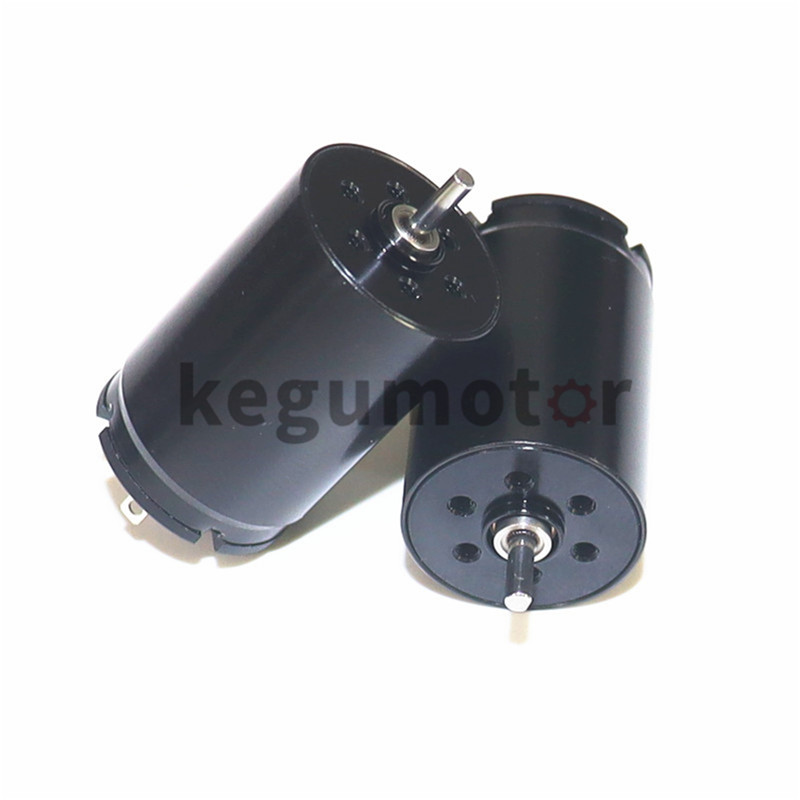

- Motor type: PMDC coreless motor
- Motor housing (D*F* L): Φ18*27mm
- Housing material: SECD-O
- Shaft (diameter): 2mm SUS304 steel (nickel coating)
- Way of commutation: Precious metal-brush
- Structure: 2-pole stator and hollow cup type
- Magnet type: Nd-Fe-B
- Rotation: CW/CCW and reversible
- Weight: 60.3g(approx)
|
Motor Name
|
1827
18mm Precious metal brushes coreless motor
|
|
|
Medical equipment、Tattoo Machine
Home appliance、Tattoo Pen
Industrial automation
|
|
Nominal voltage
|
12V
|
|
No load current
|
44mA
|
|
Stall torque
|
301 g.cm
|
|
Efficiency
|
83%
|
This type of 1827 series Tattoo Equipment Coreless DC Motor will offer a good specification with high speed and torque to customer’s equipment and lead high precise, reliable control, lower vibration and noise on the tattoo Equipment which can offer the customer with good tattoo experience. We can make the customized shaft and holes at the front cover. Depending on the model, yet can nonetheless deliver the necessary performance – thanks to our high efficiency factors of up to 90 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.18mm Coreless geared DC Motor,18mm slotless motor with 22mm planetary gearbox.We also provide 18mm slotless motor samples per requirements.
Specification of the High Torque 1827 Series Coreless DC Motor
|
No. |
Motor Model |
Operating Voltage |
Rated Voltage |
No Load Speed |
No Load Current |
Stall Torque |
Stall Current |
Terminal Resistance |
|
V |
V |
r/min |
mA |
mNm |
A |
ohm |
||
|
1 |
1827-V1 |
1.5-6.0 |
6.0 |
8000 |
25 |
15.3 |
2.2 |
2.7 |
|
2 |
1827-V2 |
3.0-8.0 |
8.0 |
8100 |
30 |
30.5 |
2.5 |
3.0 |
|
3 |
1827-V3 |
3.0-12.0 |
12 |
10000 |
30 |
36.9 |
3.0 |
4.0 |
|
4 |
1827-V4 |
3.0-24.0 |
12 |
13100 |
25 |
43.3 |
2.4 |
10.0 |

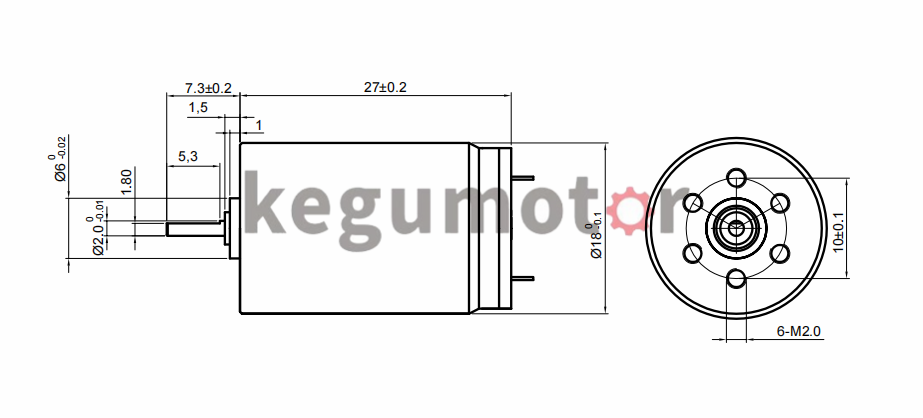

1827r 18mm Series Coreless DC Motor Dimensions
This 1827 Series coreless motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.
Small vibration offering the best tattoo experience for customer.
Reliable and stable with long lifetime.
100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.
The perfect substitute for European motors which can save lots of time and cost for our customer.
80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
Custom specification is also available for us.
