10mm Diameter 20mm Length 7.4V Coreless DC Motor Model 1020_Micro BLDC Gear Motor|Micro DC Planetary Gear Motor|Mini BLDC Motor

10mm Diameter 20mm Length 7.4v Coreless DC Motor Model 1020 Used For Medical Application

Ask 7.4V Coreless DC Motor Datasheet & Price Now! Fast Reply Within Few Hours! Longer Working Time! Lower Current. New Design Support. Find Best 7.4V DC Motor Seller From China. Premium Quality & Coreless DC Motor Exporter.

10mm Coreless DC Motor, Model 1020 series

Motor Name	1020 Precious metal brushes coreless motor
Typical Application	Medical equipment、 Home appliance、 Industrial automation
Nominal voltage	7.4V
No load current	40mA
Stall torque	6.6mNm
Efficiency	78%

Induction of the High Torque 1020 Series Coreless DC Motor

The coreless motor we made for the devices which need longer working time and low consumption. If you are designing a new device, you can find the right coreless motor here, lower internal resistance, longer working life, high quality. We have more experience in international shipment to your country from China manufacturer via UPS, DHL or FedEx door to door service.

This type of 1020 series Tattoo Equipment Coreless DC Motor will offer a good specification with high speed and torque to customer’s equipment and lead high precise, reliable control, lower vibration and noise on the tattoo Equipment which can offer the customer with good tattoo experience. We can make the customized shaft and holes at the front cover. Depending on the model, yet can nonetheless deliver the necessary performance – thanks to our high efficiency factors of up to 90 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.

Specification of the High Torque 1020 Series Coreless DC Motor

No.	Motor Model	Operating Voltage	Rated Voltage	No Load Speed	No Load Current	Stall Torque	Stall Current	Terminal Resistance
No.	Motor Model	V	V	r/min	mA	mNm	A	ohm
1	1020R-V1	3.0-9.0	7.4	24500	40	6.64	2.35	3.15
2	1020R-V2	3.0-9.0	7.4	27500	40	6.54	2.60	2.85
3	1020R-V3	3.0-9.0	5.0	29100	32	5.8	495	3.59
4	1020R-V4	3.0-9.0	7.4	33600	65	8.4	9250	4.11

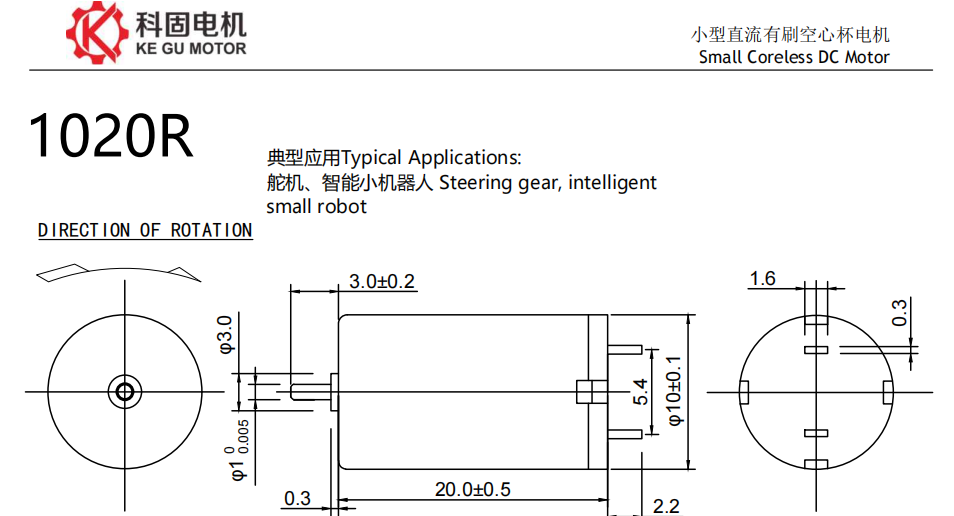

1020R 10mm Series Coreless DC Motor Dimensions

Feature and Application of High Torque 1020 Series Coreless DC Motor

This 1020 Series coreless motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

Small vibration offering the best tattoo experience for customer.

Reliable and stable with long lifetime.

100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

The perfect substitute for European motors which can save lots of time and cost for our customer.

80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
Custom specification is also available for us.
10mm Coreless Motor, 10mm Hollow Cup Motor, Coreless Motor for Tattoo Machine,Hollow Cup Motor for Tattoo Machine,Tatto Machine Motor, Tatto Machine Coreless Motor, Tatto Machine Hollow Cup Motor,Coreless Motor Manufacturer, Coreless Motor Factory,Coreless Motor China Shenzhen Manufacturer Factory,Customized Motor,Custom Coreless Motor

10mm Diameter 20mm Length 7.4V Coreless DC Motor Model 1020

1020R 10mm Series Coreless DC Motor Dimensions
