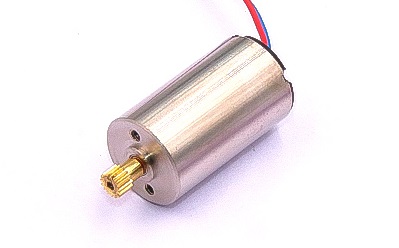

12mm Diameter 20mm Length 5V Coreless DC Motor Model 1220

Ask 5V Coreless DC Motor Datasheet & Price Now! Fast Reply Within Few Hours! Longer Working Time! Lower Current. New Design Support. Find Best 5V DC Motor Seller From China. Premium Quality & Coreless DC Motor Exporter.

12mm Coreless DC Motor, Model 1220 series

Motor type: PMDC coreless motor
Motor housing (D*F* L): Φ12*20mm
Housing material: SECD-O
Shaft (diameter): 1mm SUS304 steel (nickel coating)
Way of commutation: Precious metal-brush
Structure: 2-pole stator and hollow cup type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 9.6g(approx)

Motor Name	1220 Precious metal brushes coreless motor
Typical Application	Medical equipment、 Home appliance、 Industrial automation
Nominal voltage	5V
No load current	25mA
Stall torque	60 g.cm
Efficiency	75%

Induction of the High Torque 1220 Series Coreless DC Motor
Mini 1220 Coreless Motor Terminal with Line Electric Motor DC Motor with Brush Used for Adult Products, Sexual Products, Model Airplane Airplane, Small Fan, DC Motor, Coreless Motor

This type of 1220 series Tattoo Equipment Coreless DC Motor will offer a good specification with high speed and torque to customer’s equipment and lead high precise, reliable control, lower vibration and noise on the tattoo Equipment which can offer the customer with good tattoo experience. We can make the customized shaft and holes at the front cover. Depending on the model, yet can nonetheless deliver the necessary performance – thanks to our high efficiency factors of up to 90 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.

Specification of the High Torque 1220 Series Coreless DC Motor

No.	Motor Model	Operating Voltage	Rated Voltage	No Load Speed	No Load Current	Stall Torque	Stall Current	Terminal Resistance
No.	Motor Model	V	V	r/min	mA	mNm	A	ohm
1	1220R-V1	1.5-3.0	3.0	11500	60	2.3	2.21	1.36
2	1220R-V2	3.0-6.0	5.0	15000	25	6.1	1.79	2.80
3	1220R-V3	3.0-12.0	12	17000	20	3.9	0.68	17.7
4	1220R-V4	3.0-12.0	12	14100	8	5.3	0.67	17.9

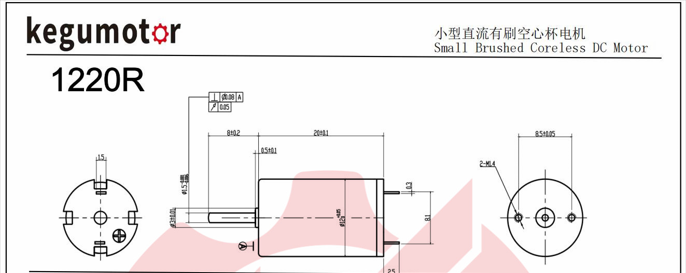

1220r 12mm Series Coreless DC Motor Dimensions

This 1220 Series coreless motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

Small vibration offering the best tattoo experience for customer.

Reliable and stable with long lifetime.

100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

The perfect substitute for European motors which can save lots of time and cost for our customer.

80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
Custom specification is also available for us.
