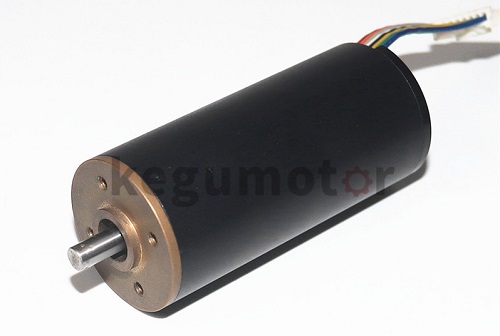

32mm Diameter 70mm Length 24V Coreless Brushelss Motor Model 3270RB

32mm Coreless DC Motor – 70mm Type Model 3270RB

• Motor type: PMDC coreless motor
• Motor housing (D*F* L): Φ32*70mm
• Housing material: SECD-O
• Shaft (diameter): 4mm SUS304 steel (nickel coating)
• Way of commutation: Precious metal-brush
• Structure: 2-pole stator and hollow cup type
• Magnet type: Nd-Fe-B
• Rotation: CW/CCW and reversible
•

• Motor Name	3270RB  coreless brushless motor
  Typical Application	Medical equipment、 Home appliance、 Industrial automation
  Nominal voltage	21V
  No load current	440mA
  Stall torque	887mNm
  Efficiency	85%

  Induction of the High Torque 3270RB 32mm Series Brushless Coreless DC Motor
  This type of 3270rb 32mm series Tattoo Equipment Coreless Brushless DC Motor will offer a good specification with high speed and torque to customer’s equipment and lead high precise, reliable control, lower vibration and noise on the tattoo Equipment which can offer the customer with good tattoo experience. We can make the customized shaft and holes at the front cover. Depending on the model, yet can nonetheless deliver the necessary performance – thanks to our high efficiency factors of up to 80 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.

  Specification of the High Torque 3270RB 32MM Series Brushless Coreless BLDC Motor

  No.	Motor Model	Operating Voltage	Rated Voltage	No Load Speed	No Load Current	Stall Torque	Stall Current
  		V	V	r/min	mA	mNm	A
  1	3270RB-V1	12-24	21	15000	440	887	67.7
  2	3270RB-V2	18-26	40	15500	190	966	40

  3270RB 32mm Series  Coreless Brushless Motor Dimensions

•

• This 3270RB Series 32mm  coreless brushless motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

                  Small vibration offering the best tattoo experience for customer.

                  Reliable and stable with long lifetime.

                  100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

                  The perfect substitute for European motors which can save lots of time and cost for our customer.

       80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
  Custom specification is also available for us.
