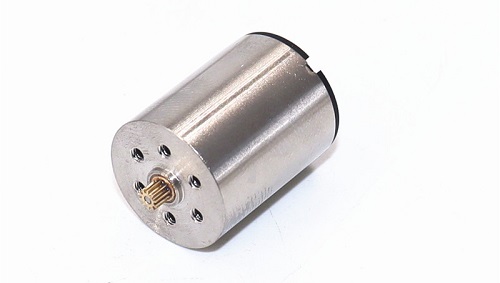

17mm Diameter 22mm Length 12V Coreless DC Motor Model 1722

17mm Diameter 22mm Length 12V Coreless DC Motor Model 1722

• Motor type: PMDC coreless motor
• Motor housing (D*F* L): Φ17*22.2mm
• Housing material: SECD-O
• Shaft (diameter): 1mm SUS304 steel (nickel coating)
• Way of commutation: Precious metal-brush
• Structure: 2-pole stator and hollow cup type
• Magnet type: Nd-Fe-B
• Rotation: CW/CCW and reversible
• Weight: 26g(approx)

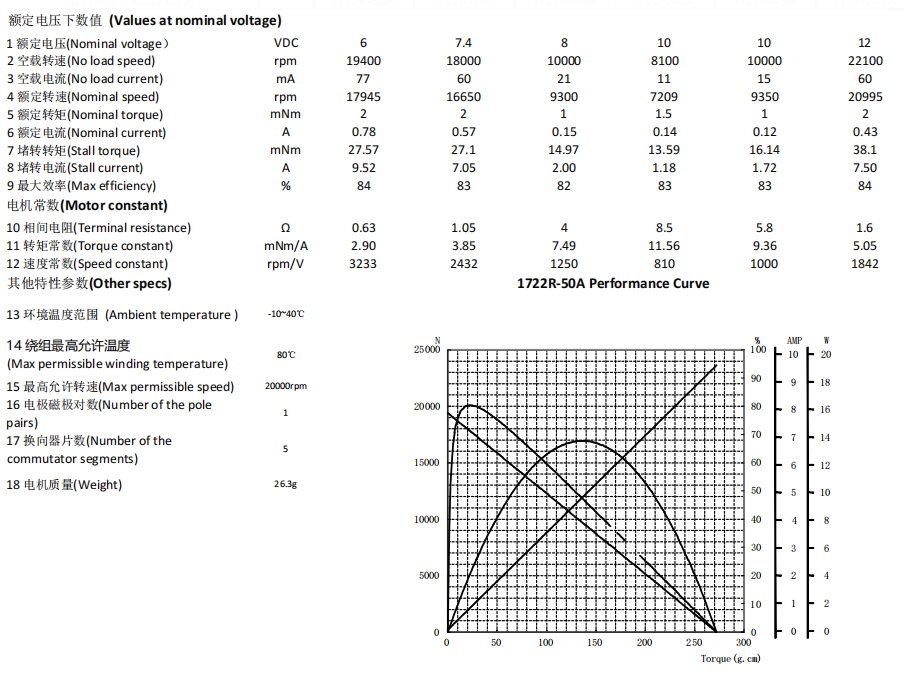

Specification of the High Torque 1722 Series Coreless DC Motor

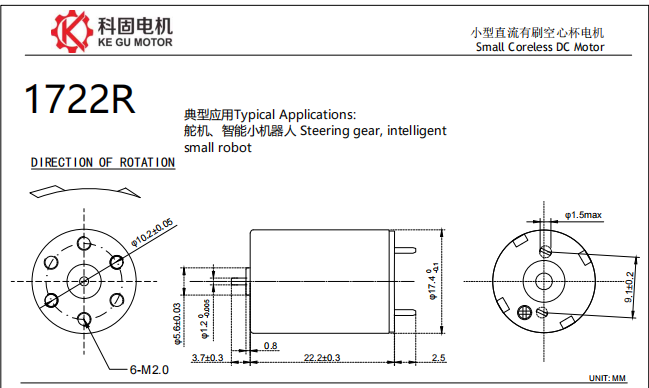

1722r 17mm Series Coreless DC Motor Dimensions

This 1722 Series coreless motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

                Small vibration offering the best tattoo experience for customer.

                Reliable and stable with long lifetime.

                100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

                The perfect substitute for European motors which can save lots of time and cost for our customer.

80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
Custom specification is also available for us.
