17mm Diameter 25mm Length 12V Coreless DC Motor Model 1725

Ask 12V Coreless DC Motor Datasheet & Price Now! Fast Reply Within Few Hours! Longer Working Time! Lower Current. New Design Support. Find Best 12 V DC Motor Seller From China. Premium Quality & Coreless DC Motor Exporter.

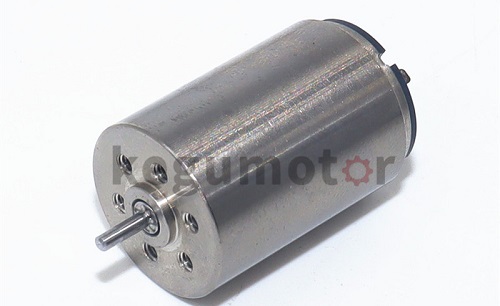

17mm Coreless DC Motor, Model 1725 series

Motor type: PMDC coreless motor
Motor housing (D*F* L): Φ17*25mm
Housing material: SECD-O
Shaft (diameter): 1mm SUS304 steel (nickel coating)
Way of commutation: Precious metal-brush
Structure: 2-pole stator and hollow cup type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 27g(approx)

Motor Name	1725 17mm Precious metal brushes coreless motor
Typical Application	Medical equipment、 Home appliance、 Industrial automation
Nominal voltage	12V
No load current	17mA
Stall torque	188 g.cm
Efficiency	83%

Induction of the High Torque 1725 Series Coreless DC Motor

This type of 1725 series Tattoo Equipment Coreless DC Motor will offer a good specification with high speed and torque to customer’s equipment and lead high precise, reliable control, lower vibration and noise on the tattoo Equipment which can offer the customer with good tattoo experience. We can make the customized shaft and holes at the front cover. Depending on the model, yet can nonetheless deliver the necessary performance – thanks to our high efficiency factors of up to 80 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.

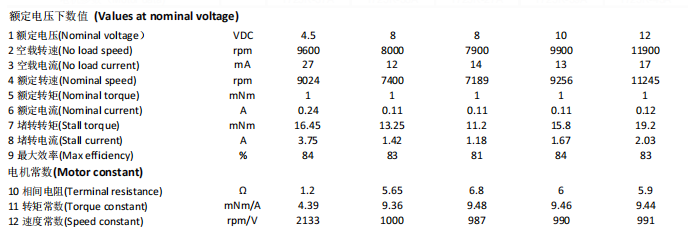

Specification of the High Torque 1725 Series Coreless DC Motor

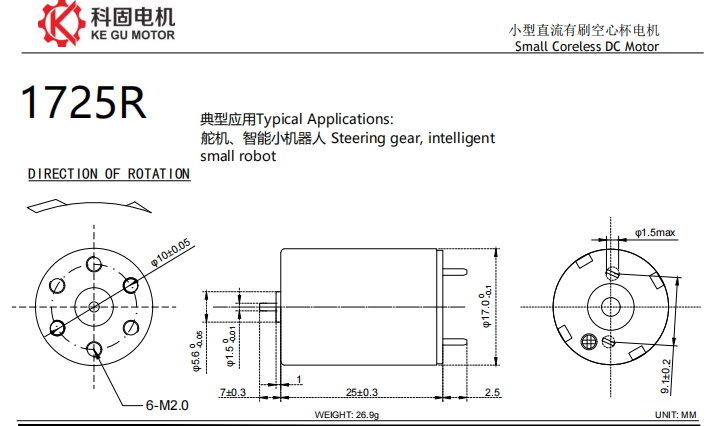

1725r 17mm Series Coreless DC Motor Dimensions

This 1725 Series coreless motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

Small vibration offering the best tattoo experience for customer.

Reliable and stable with long lifetime.

100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

The perfect substitute for European motors which can save lots of time and cost for our customer.

80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
Custom specification is also available for us.
17mm Coreless Motor, 17mm Hollow Cup Motor, Coreless Motor for Tattoo Machine,Hollow Cup Motor for Tattoo Machine,Tatto Machine Motor, Tatto Machine Coreless Motor, Tatto Machine Hollow Cup Motor,Coreless Motor Manufacturer, Coreless Motor Factory,Coreless Motor China Shenzhen Manufacturer Factory,Customized Motor,Custom Coreless Motor
