Motor Name
|
1515
brushless coreless motor
|
|
Medical equipment、
Home appliance、
Industrial automation
|
Nominal voltage
|
7.4V
|
No load current
|
200mA
|
Stall torque
|
54 g.cm
|
Efficiency
|
59%
|

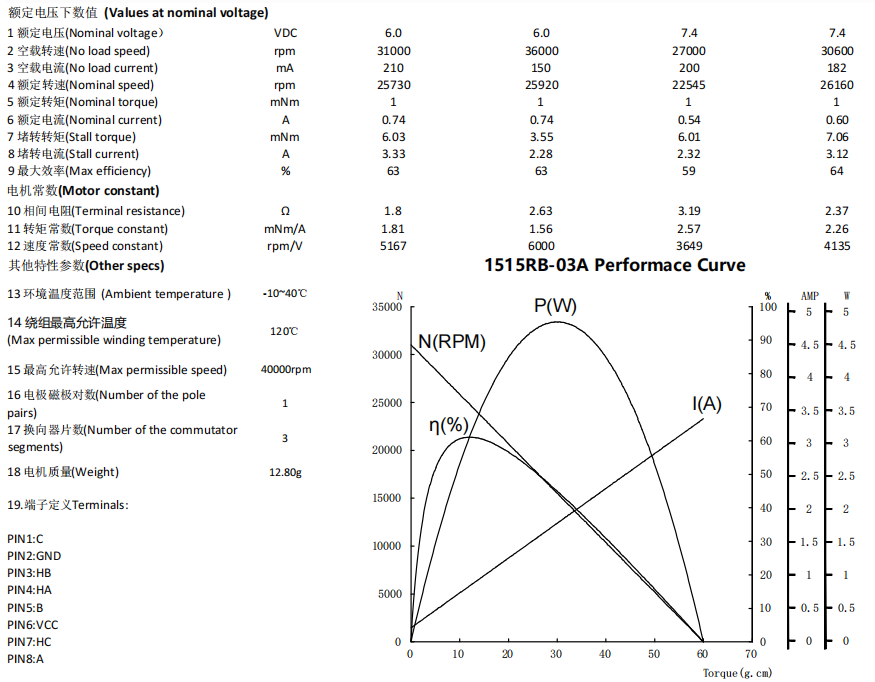

Specification of the High Torque 1515 Series Brushless Coreless DC Motor

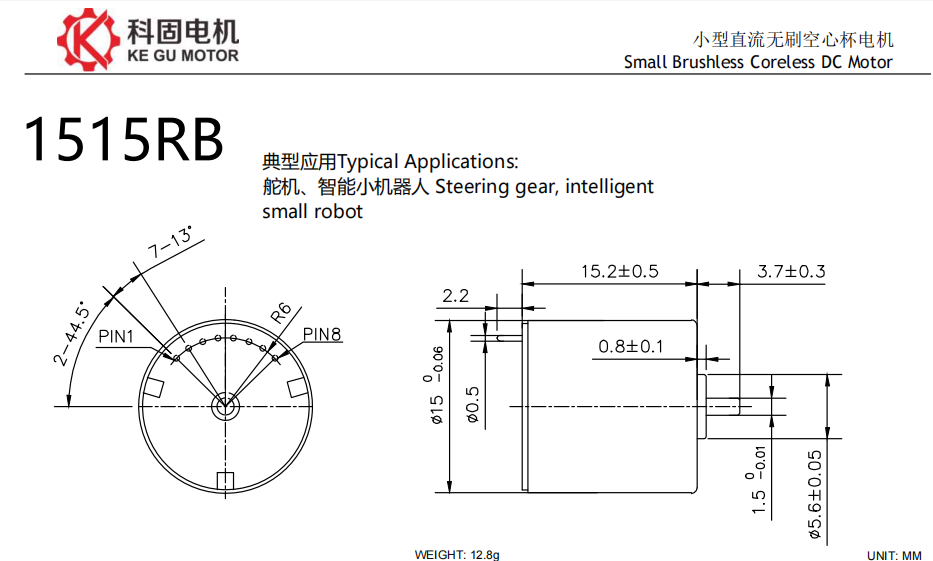

1515rb 15mm Series Brushless Coreless DC Motor Dimensions

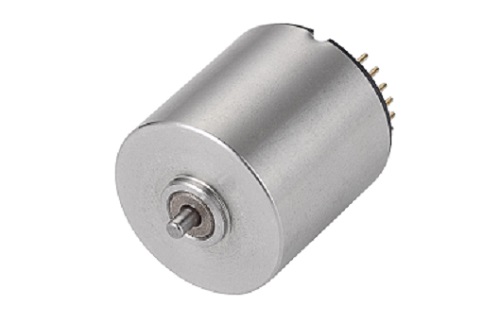

This 1515 Series 15mm brushless coreless motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.
Small vibration offering the best tattoo experience for customer.
Reliable and stable with long lifetime.
100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.
The perfect substitute for European motors which can save lots of time and cost for our customer.
80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
Custom specification is also available for us.
15mm Brushless Coreless Motor, 15mm Hollow Cup Motor, 16mm Slotless Gear Motor, 16mm slotless brushless gear motor for Tattoo Machine,Hollow Cup Motor for Tattoo Machine,Tatto Machine Motor, Tatto Machine Coreless Motor, Tatto Machine Hollow Cup Motor,Coreless Motor Manufacturer, Coreless Motor Factory,Coreless Motor China Shenzhen Manufacturer Factory,Customized Motor,Custom Coreless Motor
