2.5v 10mm plastic planetary gearmotor

Desc:

10mm 2.5v plastic gearmotor,Kegumotor provide 10mm plastic planetary gearbox datasheet and specification...

Recommended
Detailed

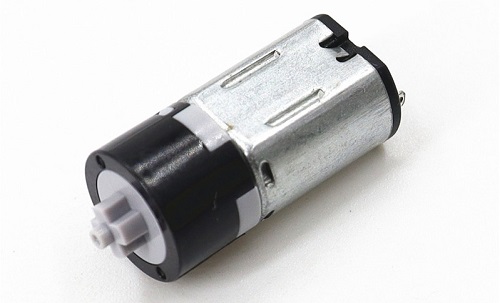

Product description: M10 2.5v 10mm plastic planetary gearmotor
mini 10mm
planetary reduction gearbox motor

1. Rated Voltage: 3.0-6V

2. No Load Speed: 40-150 rpm
3. No Load Current: 40 mA
4. Rated Load Speed: 35-130 rpm

5. Rated Load Current: 100 mA



Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock

Financial Medical Equipment: 3Doodler ,Projector

Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

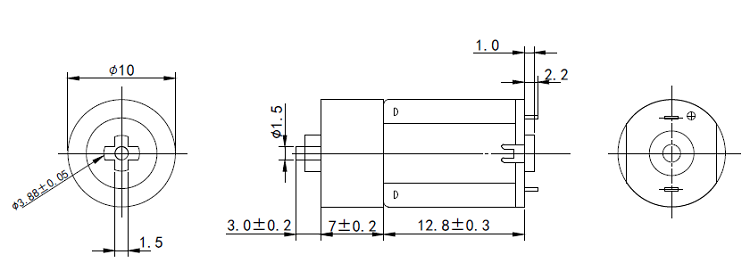

Drawing of 10mm plastic planetary gearmotor



Data Sheet of 10mm plastic planetary gearmotor:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min mA r/min mA mN.m g.cm w mN.m g.cm mA
KG-10PM10-01 2.0-4.0 3.0 50 35 38 65

6.12

60 0.1 20.4 200 160
KG-10PM10-02 2.0-4.0 3.0 120 40 89 110

2.94

30 0.2 17.6 180 350
KG-10PM10-03 1.0-3.0 1.5 45 32 40 70

8.67

85 0.2 17.37 165 160
KG-10PM10-04            2.0-4.0     3.0    65        35     45        70   5.1   50      0.1   25.2  250       180

Remarks:Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
