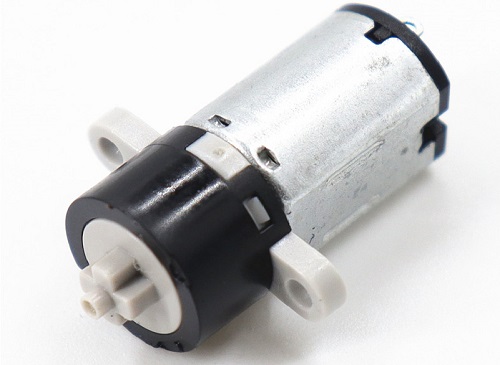

Description:M10 10mm plastic planetary gearmotor 3.0v
mini 10mm planetary reduction gearbox motor
1. Rated Voltage: 3.0-6V
2. No Load Speed: 40-150 rpm5. Rated Load Current: 100 mA
Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock
Financial Medical Equipment: 3Doodler ,Projector
Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

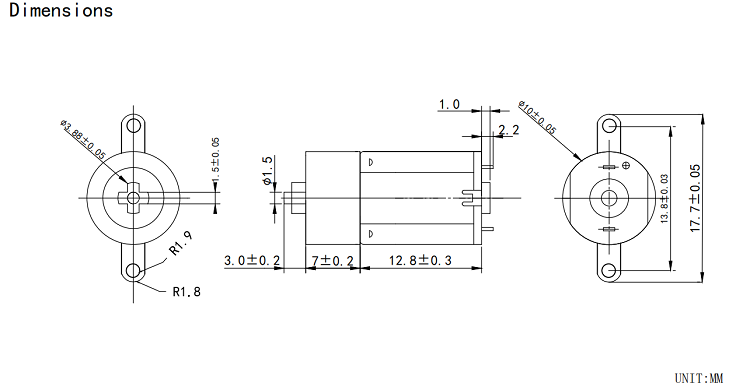

Drawing of 10mm plastic planetary gearmotor
Data Sheet of 10mm plastic planetary gearmotor:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
OPERATING RANGE | RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
V | r/min | mA | r/min | mA | mN.m | g.cm | w | mN.m | g.cm | mA | ||
KG-10PM10-L-01 | 2.0-4.0 | 3.0 | 50 | 35 | 38 | 65 |
6.12 |
60 | 0.1 | 20.4 | 200 | 160 |
KG-10PM10-L-02 | 2.0-4.0 | 3.0 | 120 | 40 | 89 | 110 |
2.94 |
30 | 0.2 | 17.6 | 180 | 350 |
KG-10PM10-L-03 | 1.0-3.0 | 1.5 | 45 | 32 | 40 | 70 |
8.67 |
85 | 0.2 | 17.37 | 165 | 160 |
KG-10PM10-L-04 | 2.0-4.0 | 3.0 | 65 | 35 | 45 | 70 | 5.1 | 50 | 0.1 | 25.2 | 250 | 180 |
Remarks:Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
