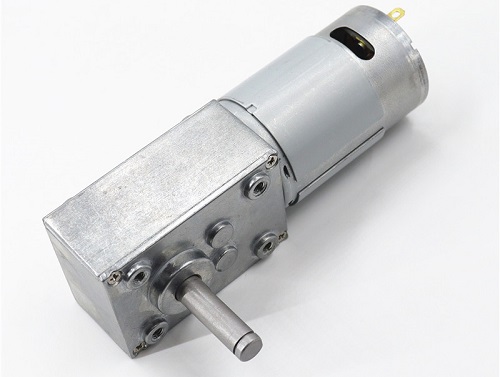

Model:KG-5840Z550 58mm micro dc worm gearmotor
Diameter:Motor 36mm
Length:58+57mm
Characters:
1.Small size dc gear motor with low speed and big torque
2.40*58mm gear motor provide 2.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 81、135、207、405、621
Gearbox features:
1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.
2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.
3. Meet EU environmental protection standards.
4. Appearance and structural design strive to be thin, short, compact, and lightweight.
5. Make the modulus of the gear to a minimum of 0.3mm within a limited volume.
Motor Specifications:
1. Rated Voltage: 3.0-24V
2. No Load Speed: 35-200 rpm
3. No Load Current: 400 mA
4. Rated Load Speed: 32-185 rpm
5. Rated Load Current: 2.0 A

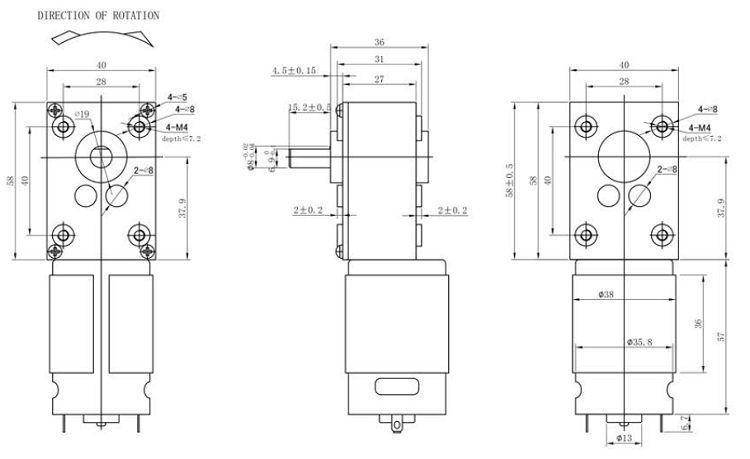

Drawing of 58mm micro dc worm gearmotor
Performance of 58mm micro dc worm gearmotor
|
MODEL |
VOLTAGE |
NO LOAD |
AT RATED LOAD |
|||||
|
OPERATION |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
||
|
r/min |
A |
r/min |
A |
kg.cm |
||||
|
KG-5840Z550-1 |
9.0-14.0 |
12.0 |
122 |
≤0.40 |
95 |
≤2.0 |
10 |
|
|
KG-5840Z550-2 |
9.0-14.0 |
12.0 |
81 |
≤0.40 |
63 |
≤2.0 |
14 |
|
|
KG-5840Z550-3 |
9.0-14.0 |
12.0 |
60 |
≤0.40 |
47 |
≤2.0 |
24 |
|
|
KG-5840Z550-4 |
9.0-14.0 |
12.0 |
27.6 |
≤0.40 |
21.5 |
≤2.0 |
37 |
|
|
KG-5840Z550-5 |
9.0-14.0 |
12.0 |
20.6 |
≤0.40 |
15.5 |
≤2.0 |
50 |
|
|
KG-5840Z550-6 |
9.0-14.0 |
12.0 |
11.8 |
≤0.40 |
9.0 |
≤2.0 |
80* |
|
|
KG-5840Z550-7 |
9.0-14.0 |
12.0 |
9.5 |
≤0.40 |
7.5 |
≤2.0 |
80* |
|
|
KG-5840Z550-8 |
9.0-14.0 |
12.0 |
10.3 |
≤0.25 |
8.0 |
≤1.0 |
32 |
|
|
KG-5840Z550-9 |
9.0-14.0 |
12.0 |
5.9 |
≤0.25 |
4.5 |
≤1.0 |
49 |
|
|
KG-5840Z550-10 |
9.0-14.0 |
12.0 |
4.6 |
≤0.25 |
3.6 |
≤1.0 |
61 |
|
|
KG-5840Z 550-11 |
9.0-14.0 |
12.0 |
2.4 |
≤0.25 |
1.7 |
≤1.0 |
70 |
|
above specifications are subject to change without notice, just for reference and customizable according to requirements.
Application areas:
The company's products are widely used in: shared bicycles, electronic door locks, beauty equipment, ATM financial equipment, smart homes, range hoods, electric curtains, paper feeders, vending machines, smart water dispensers, coffee machines, printers, safes, and instruments Instruments, personal care, communication equipment, display racks, smart water meters, smart switches, optical equipment, smart robots, medical equipment and other industries can be customized according to the different needs of customers.
