Model:KG-4632Z370 46mm micro dc worm gearmotor
Diameter:Motor 25mm
Length:46+30.8mm
Characters:
1.Small size dc gear motor with low speed and big torque
2.32*46mm gear motor provide 1.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 45.8、 56.6、58.5、72、76.5、95、103、114.6、160、177、224、288、384、615、1220、1568、1650、2592
Gearbox features:
1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.
2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.
3. Meet EU environmental protection standards.
4. Appearance and structural design strive to be thin, short, compact, and lightweight.
5. Make the modulus of the gear to a minimum of 0.3mm within a limited volume.
Motor Specifications:
1. Rated Voltage: 3.0-24V
2. No Load Speed: 6-300 rpm
3. No Load Current: 60 mA
4. Rated Load Speed: 5-285 rpm
5. Rated Load Current: 160 mA

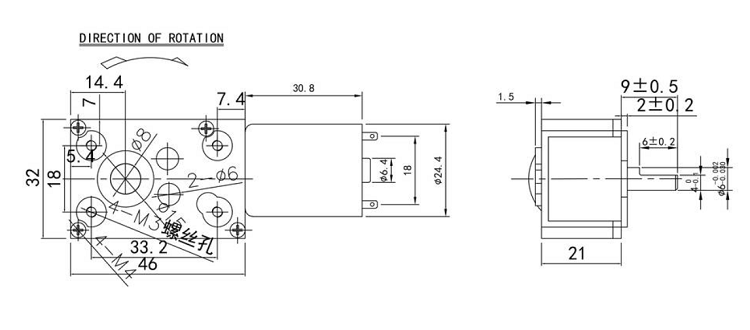

Drawing of 46mm micro dc worm gearmotor
Gear ratio and length L of gearbox
|
Number of stages |
3 |
5 |
|
Gear ratio |
45.8 |
615 |
|
56.6 |
772.5 |
|
|
58.5 |
1220 |
|
|
72 |
1568 |
|
|
76.5 |
1584 |
|
|
95 |
1650 |
|
|
103 |
2016 |
|
|
114.6 |
2592 |
|
|
160 |
||
|
177 |
||
|
224 |
||
|
288 |
||
|
384 |
||
|
Length of gearbox L(mm） |
42 |
|
SPECIFICATIONS：KG-4632Z370
|
MODEL |
V |
NO LOAD |
RATED LOAD |
STALL |
|||||
|
SPEED rpm |
CURRENT A |
SPEED rpm |
CURRENT A |
TORQUE Nm |
OUTPUT W |
TORQUE Nm |
CURRENT A |
||
|
KG-4632Z370-45.8 |
12 |
272 |
0.1 |
237 |
0.3 |
0.14 |
3.52 |
1.17 |
1.9 |
|
KG-4632Z370-76.5 |
12 |
156 |
0.1 |
136 |
0.3 |
0.24 |
3.48 |
1.96 |
1.9 |
|
KG-4632Z370-95 |
126 |
0.1 |
109 |
0.3 |
0.29 |
3.35 |
2.45 |
1.9 |
|
|
KG-4632Z370-144 |
12 |
83 |
0.1 |
72 |
0.3 |
0.46 |
3.47 |
3.5 |
1.9 |
|
KG-4632Z370-224 |
6 |
26.5 |
0.1 |
23 |
0.3 |
0.37 |
0.89 |
2.94 |
1.9 |
|
KG-4632Z370-288 |
6 |
20.5 |
0.1 |
18 |
0.3 |
0.49 |
0.92 |
3.8 |
1.9 |
|
KG-4632Z370-384 |
6 |
15.5 |
0.1 |
13.5 |
0.3 |
0.63 |
0.9 |
4.9 |
1.9 |
|
KG-4632Z370-615 |
12 |
5.8 |
0.04 |
4.9 |
0.07 |
0.68 |
0.35 |
4.6 |
0.4 |
|
KG-4632Z370-1220 |
24 |
3 |
0.02 |
2.7 |
0.04 |
1.25 |
0.35 |
5 |
0.25 |
|
KG-4632Z370-1568 |
12 |
2.2 |
0.04 |
1.9 |
0.07 |
1.76 |
0.35 |
5 |
0.4 |
|
KG-4632Z370-1650 |
3 |
1.6 |
0.07 |
1.2 |
0.09 |
0.49 |
0.06 |
3.43 |
0.35 |
|
KG-4632Z370-2592 |
3 |
1 |
0.07 |
0.75 |
0.09 |
0.83 |
0.06 |
5 |
0.35 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
