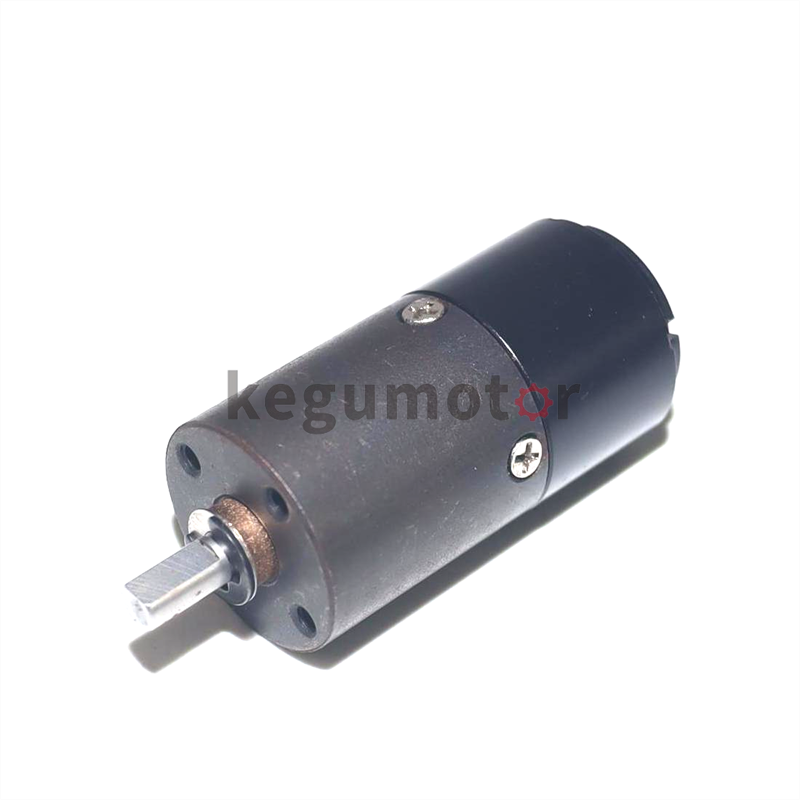

20mm Diameter 16mm Length 12V Coreless Gear Motor Model KG-20P2016R

Desc:

20mm micro coreless gear motor,Kegumotor provide 2016R 20mm coreless gear motor datasheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

20mm Coreless DC Gear Motor – 16mm Type Model KG-20P2016R



High Performance Low Consumption Coreless Gear Motors,DC Gearmotor Supplier

Coreless DC gear motor is made up two parts, precision gearboxs and a coreless dc motor.

Combination: Precision Gearboxes,Drive Electronics and Encoders

Kegumotor is committed to working with you to design and manufacture a coreless brush motor solution specific to your application needs.

Brush Type: Carbon / Precious Metal / Other
Commutator Material: Precious Metal / Graphite
Nominal Voltage
Output load speed
Power Rating
No-Load and Maximum Current
Load Torque
Rotor Inertia
Ambient Temperature Range
Motor Shaft Material & Size
Motor Shaft Configuration: Offset / Concentric / D Cut / Round / Splined / Other
Overall motor size, Diameter (L, W, H)
Encoder Type: Optical / Hall Effect
Additional Assembly Requirements (lead wires, connectors, pulley, gear, etc.)
Ask 12V Coreless DC Gear Motor Datasheet & Price Now! Fast Reply Within Few Hours! Longer Working Time! Lower Current. New Design Support. Find Best 12V DC Gear Motor Seller From China. Premium Quality & Coreless DC Gear Motor Exporter.
  • Motor type: PMDC coreless gearmotor
  • Motor housing (D*F* L): Φ20*16mm
  • Housing material: SECD-O
  • Shaft (diameter): 1mm SUS304 steel (nickel coating)
  • Way of commutation: Precious metal-brush
  • Structure: 2-pole stator and hollow cup type
  • Magnet type: Nd-Fe-B
  • Rotation: CW/CCW and reversible
  •
  • Motor Name
    KG-20P2016R
     coreless
    gear motor

    Typical Application
    Medical equipment、
    Home appliance、
    Industrial automation
    Nominal voltage
    12V
    No load current
    55mA
    Stall torque
     6.6 kg.cm
    Efficiency
    63%

    Specification of the High Torque 20mm Series Micro Coreless DC Gear Motor 2016R



    No.



    Motor Model

    Operating Voltage

    Rated Voltage

    No Load Speed

    No Load Current

    Stall Torque

    Stall Current

    V

    V

    r/min

    mA

    Nm

    A

    1

    KG-20P2016R-V1

    6-12

    12

    124

    55

    0.66

    1.1

    2

    KG-20P2016R-V2

    6-12

    12

    145

    77

    0.77

    1.5

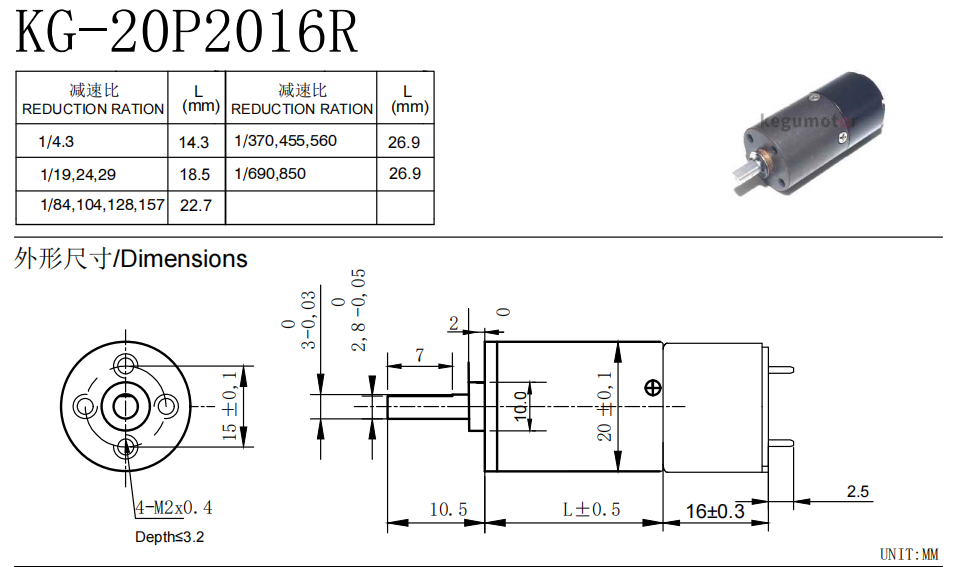

    KG-20P2016R 20mm Series  Coreless Gear Motor Dimensions 2016R

    Keywords:

    coreless gear motor, coreless dc gear motor, 6V gear motor,12V gear motor, 20mm motor

  • This 20MM Series 2016R coreless gear motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

                    Small vibration offering the best tattoo experience for customer.

                    Reliable and stable with long lifetime.

                    100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

                    The perfect substitute for European motors which can save lots of time and cost for our customer.

       80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.
    Custom specification is also available for us.
    20mm  Coreless G
    ear Motor, 20mm Hollow Cup Motor, 20mm Slotless Gear Motor,20mm slotless brushless gear motor for Tattoo Machine,Hollow Cup Motor for Tattoo Machine,Tatto Machine Motor, Tatto Machine Coreless Motor, Tatto Machine Hollow Cup Motor,Coreless Gear Motor Manufacturer, Coreless Gear Motor Factory,Coreless Motor China Shenzhen Manufacturer Factory,Customized Motor,Custom Coreless Gearmotor

       Coreless brushed motors function similarly to traditional or cored brushed motors. With a coreless design, magnetic fields are induced by applying current and voltage to the rotor windings, which react with the  permanent magnet on the stator to convert electrical energy into mechanical energy. A coreless dc motor is typically constructed with rare earth magnets to maximize performance and mechanical strength from such a small form factor. An electric micro motor like this needs the best materials in order to have a high starting torque and rapid mechanical time constant.

       The removal of the iron core, within the housing cylinder, leads to other advantages as well. Armature Windings dissipate heat more efficiently without an iron core holding onto the heat in the middle of the motor. This improved thermal performance allows a coreless dc motor to to radiate its heat through the casing, removing the need for air holes of active cooling.  In turn the sealed casings help to reduce both audible noise as well as electrical noise or EMI, making coreless motor well suited for applications sensitive to electromagnetic interference.

    Coreless Motor Performance Curves

    A coreless motor's performance and gearbox performance are combined into one graph by displaying three specific parameters. These three parameters are speed, torque and efficiency. These performance curves are essential when selecting a motor for your application.

    Gear Motor Performance Curves



    • Speed/Revolutions (N) – (unit: rpm) indicated as a straight line that shows the relationship between the motor’s torque and speed. It should be used near its peak efficiency to maximize the motor’s potential.
    • Efficiency (η) – (unit: %) is calculated by the input and output values, represented by the dashed line. To maximize the motor’s potential it should be used near its peak efficiency.
    • Torque (T) – (unit: gf-cm) this is the load borne by the motor shaft, represented on the X-axis.
    • Current (I) – (unit: A) indicated by a straight line, from no load to full motor lock. This shows the relationship between amperage and torque.
    • Output (P) – (unit: W) is the amount of mechanical energy the motor puts out.
