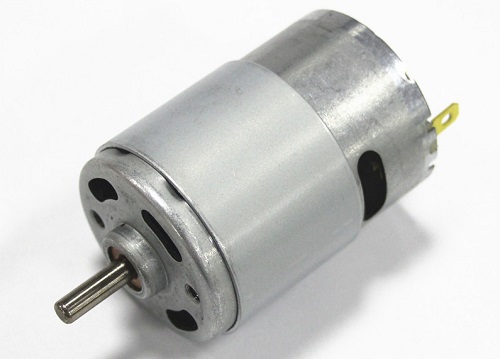

RS-750/755SH 42mm 12V Mikrobürsten-Gleichstrommotor
RS-750/755SH Motorbeschreibung
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RS-750/755 |
Load current |
5.05A |
|
Load power |
41.7W |
Load volt |
12V |
Size |
Φ42.2X60MM |
|
Load speed |
8900RPM |
Load Torque |
456G.cm |
|
|
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
|
|
|
Volt range |
3.0-24V |
Efficiency |
68.8% |
|
|
RS-750/755SH Übersicht
RS-750/755SH Datenblatt
|
Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
|
VDC |
r/min |
A |
rpm |
g.cm |
A |
W |
g.cm |
A |
|
|
RS-750SH-5050 |
12.0 |
10500 |
0.85 |
8900 |
456 |
0.85 |
41.7 |
3000 |
28.5 |
|
RS-750SH-7032 |
12.0 |
15000 |
1.79 |
12671 |
496 |
7.52 |
66.6 |
4010 |
55.6 |
|
RS-750PH-7030 |
9.6 |
12700 |
1.30 |
12700 |
550 |
9.90 |
62.1 |
4110 |
65.5 |
|
RS-755SH-7512 |
6.0 |
9500 |
2.26 |
8123 |
460 |
9.31 |
38.2 |
3130 |
66.3 |
|
RS-755SH-4050 |
12.0 |
6500 |
0.5 |
5400 |
350 |
4.6 |
19.4 |
2080 |
12.4 |
|
RS-755PH-8017 |
18.0 |
19800 |
2.3 |
16320 |
1406 |
18.8 |
235 |
8000 |
96.5 |
|
RS-755VC-4540 |
18.0 |
8800 |
0.7 |
7470 |
651 |
3.92 |
49.9 |
4302 |
22.0 |
Spannung, Nenndrehmoment, Drehzahl, Strom, Leistung und Wellengröße können nach Bedarf angepasst werden.
RS-750/755SH -Anwendung
Haushaltsgeräte: CD/DVD-Player, Kamera, Blutdruckmessgerät, Kamera, Reiskocher.
Haarpflege: Elektrischer Rasierer.
Büroausstattung: Drucker, Projektor, Zählmaschine.
Geschäftsausstattung: Verkaufsautomaten, Parkschlösser, Geldautomaten, Mahjong-Automaten, Kartenleseautomat.
