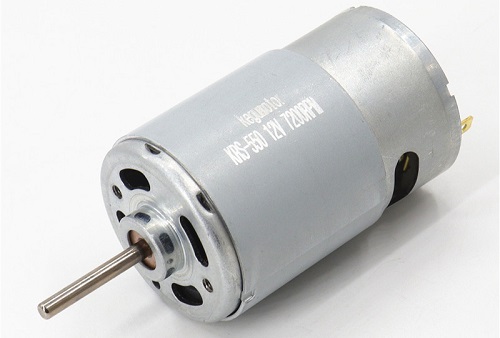

RS-550/555SH 36mm 12V Mikrobürsten-Gleichstrommotor
RS-550/555SH Motorbeschreibung
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RS-550/555 |
Load current |
1.7A |
|
Load power |
13.3W |
Load volt |
12V |
Size |
Φ35.8x57MM |
|
Load speed |
6300RPM |
Load Torque |
206G.cm |
|
|
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
|
|
|
Volt range |
3.0-24V |
Efficiency |
65.2% |
|
|
RS-550/555SH Übersicht
RS-550/555SH Datenblatt
|
Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
|
VDC |
r/min |
A |
rpm |
g.cm |
A |
W |
g.cm |
A |
|
|
RS-550SA-3780 |
12.0 |
7280 |
0.25 |
6300 |
206 |
1.70 |
13.3 |
1530 |
11.2 |
|
RS-550SA-23128 |
24.0 |
4500 |
0.10 |
3932 |
262 |
0.39 |
10.6 |
2080 |
4.8 |
|
RS-550SA-6034 |
12.0 |
16000 |
1.12 |
13613 |
261 |
4.96 |
40.36 |
2870 |
48.9 |
|
RS-555SA-3540 |
12.0 |
7800 |
0.30 |
6708 |
223 |
1.84 |
15.3 |
1591 |
11.3 |
|
RS-555SA-23100 |
24.0 |
7000 |
0.14 |
6004 |
196 |
0.77 |
12.1 |
1270 |
4.2 |
|
RS-555PH-6530 |
14.4 |
20500 |
1.40 |
17500 |
424 |
7.64 |
76.2 |
2900 |
44.0 |
|
RS-555SH-6529 |
12.0 |
18000 |
1.25 |
15669 |
453 |
8.4 |
72.9 |
3498 |
56.5 |
|
RS-555PH-27130 |
24.0 |
7500 |
0.20 |
6527 |
298 |
1.34 |
20.0 |
2300 |
9.0 |
|
RS-555SH-2763 |
24.0 |
7500 |
0.21 |
6460 |
332 |
1.30 |
22.1 |
2402 |
8.1 |
Spannung, Nenndrehmoment, Drehzahl, Strom, Leistung und Wellengröße können nach Bedarf angepasst werden.
RS-550/555SH -Anwendung
Haushaltsgeräte: CD/DVD-Player, Kamera, Blutdruckmessgerät, Kamera, Reiskocher.
Haarpflege: Elektrischer Rasierer.
Büroausstattung: Drucker, Projektor, Zählmaschine.
Geschäftsausstattung: Verkaufsautomaten, Parkschlösser, Geldautomaten, Mahjong-Automaten, Kartenleseautomat.
