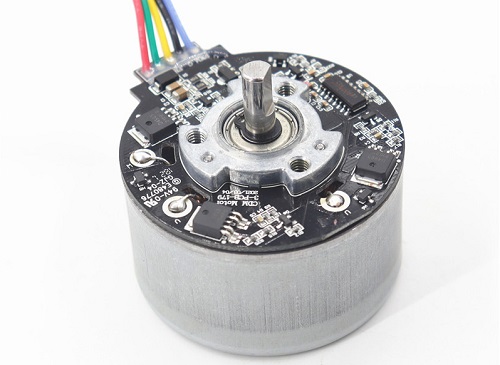

BL3025O BL3025 OD 30mm Mini BLDC Brushless DC Motor

Time：2021-11-11 11:17　Click：

BL3025O BL3025 OD Diameter 30mm Small Out Rotor Brushless DC BLDC Motor -Typical Application

Communication Device: Antenna RCU

Automobile Parts: Micro Pump, Switcher

Home Application: White Goods, Small Appliance, Kitchen Appliance,

Smart Home, Micro Actuate

Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

Business Equipment: Scanner, Cash Register

Personal Care: Skin Care, Beauty Apparatus

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

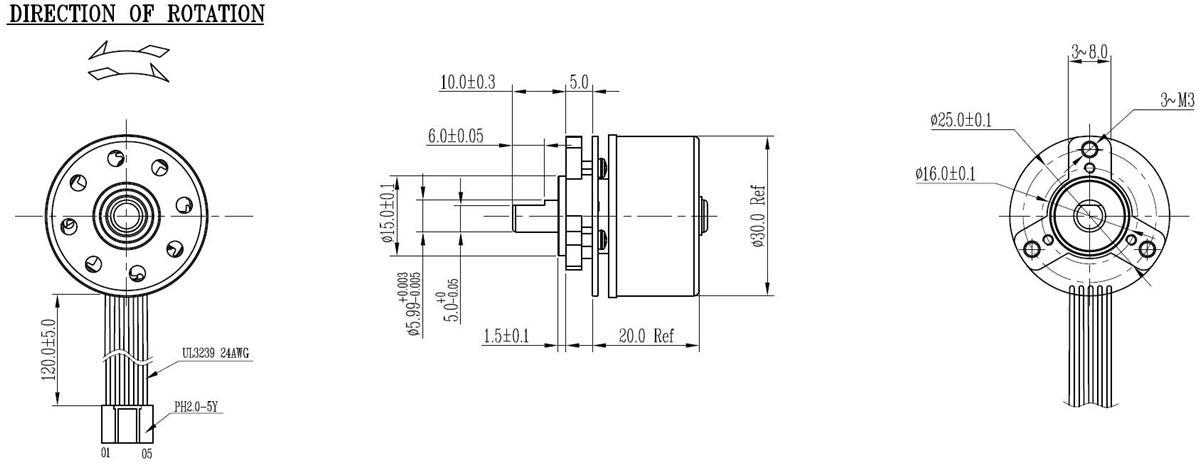

BL3025O BL3025 Outline Drawing:

BL3025O BL3025 Data Sheet

Motor Model	Rated Voltage	No-load Speed	No-load Current	Rated speed	Rated torque	Rated current	Output power	Stall Torque	Stall Current
Motor Model	VDC	r/min	A	rpm	mNm	A	W	mNm	A
BL3025O-V1	3.7	3800	0.60	3000	19.6	2.2	6	96	8.7
BL3025O-V2	7.4	4200	0.35	3400	26.3	1.6	9	145	7.2
BL3025O-V3	12.0	4700	0.25	4000	34.8	1.3	14	218	7.0

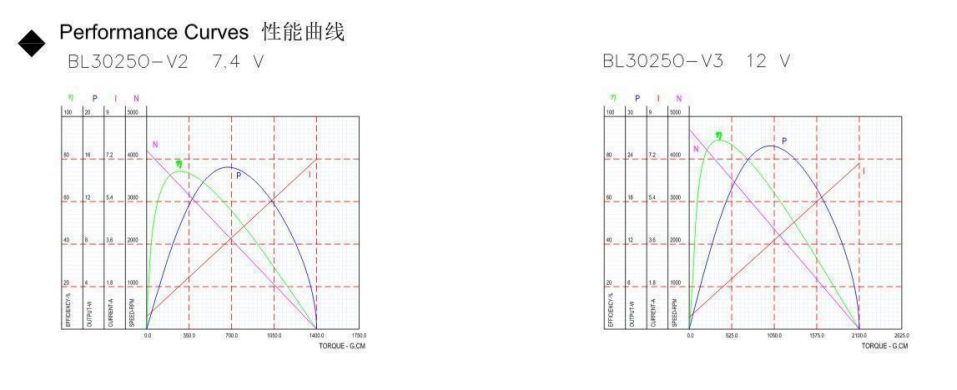

BL3025O-V2 7.4V BL3025O-V3 12V

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current,
power and shaft extension feature & dimension can be changed to meet customer specific requirement.

Note: The data in this typical data sheet applies to other specific customers.

The reliability and stability of the product is an important index for evaluating the technical level of the product. To precisely analyze, evaluate and verify the performance of the product.
